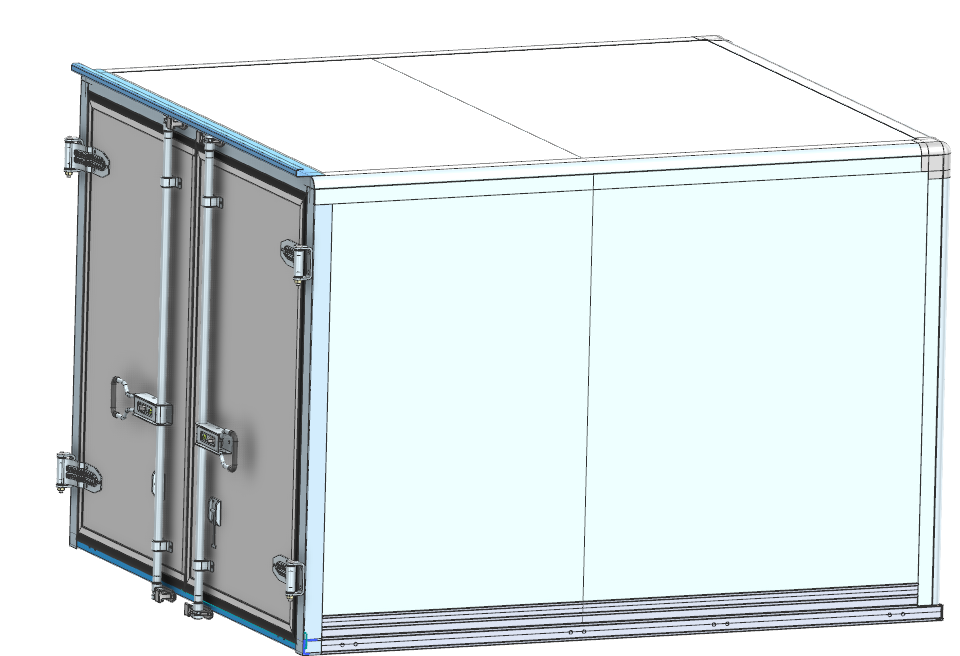

This plug-in panel truck body uses a modular honeycomb sandwich structure, offering outstanding durability, weather resistance, and easy installation — no drilling, no permanent modification.
| Parameter | Value |
| Model | Plug-in panel-2 |
| Panel Quantity | 32 pcs / set |
| Single Panel Size | 1680 × 1500 × 65.8 mm |
| Core Material | 30mm ABS honeycomb |
| Surface Material | Custom (ABS / PP / PET available) |
| Total Weight (approx.) | 67.375 kg (for reference) |
| Compatible Vehicles | Ford Maverick, Hyundai Santa Cruz |
The truck bodyis built around a sandwich panel structure:
• Top skin: ABS / PP / PET (weather-resistant)
• Core: 30mm ABS honeycomb (lightweight & rigid)
• Bottom skin: Same as top (balanced strength)
1. Lightweight – significantly lighter than plywood or steel
2. High impact resistance – ABS core absorbs shock well
3. Moisture-proof – no rotting or water absorption
4. No rust, no corrosion
Optional upgrade: PP or PET surface skins for enhanced UV resistance and surface hardness.
| Section | Dimension (mm)For reference onlyCustomization available. |
| Overall length | 1680 |
| Overall width | 1500 |
| Overall height | 65.8 |
| Internal usable (approx.) | 1620 × 1440 × 1200 (estimated) |
| Wall thickness | 2.8 (skin reference) |
| Panel mating tolerance | ≤ 0.5 mm |
| Feature | Benefit |
| Plug-in design | Tool-free assembly, no drilling required |
| Modular panels | Easy replacement of single damaged panel |
| Factory-fitted edges | Sealed against dust and light rain (dry use) |
| Honeycomb core | Rigid yet lightweight |
| Universal fit | Works with Ford & Hyundai compact pickups |
✅ Ford Maverick (2022–2025)
✅ Hyundai Santa Cruz (2022–2025)
Suitable for both short bed and standard bed versions. Please confirm bed dimensions before ordering.
| Component | Qty |
| Side wall panels | 12 |
| Front wall panel | 2 |
| Rear wall panels | 6 |
| Floor panels | 8 |
| Corner connectors | 4 sets |
| Edge sealing strips | 1 set |
| Assembly instruction | 1 copy |
✅ Dry cargo use (dust-proof, light rain resistant)
❌ Not fully waterproof (not suitable for high-pressure washing or submersion)
✅ Operating temp: -20°C ~ +70°C
✅ UV-stable surface optional
1. Lay floor panels directly onto pickup bed
2. Plug in side & front panels using edge connectors
3. Install rear panels and secure with straps (optional)
⏱️ First-time assembly: ~30–45 minutes
⏱️ Subsequent reassembly: ~15 minutes
| Option | Available |
| Standard kit (Ford/Hyundai) | ✅ In stock |
| Custom color surface | ✅ MOQ applies |
| Logo printing | ✅ MOQ applies |
| Full waterproof upgrade | ✅ Contact us |
| PET / PP surface layer | ✅ Optional |
1. Engineered for compact pickups – not a universal “one-size-fits-all”
2. Light enough for one person to install
3. Strong enough for tools, gear, and light equipment
4. Removable – restore your truck to stock in minutes
