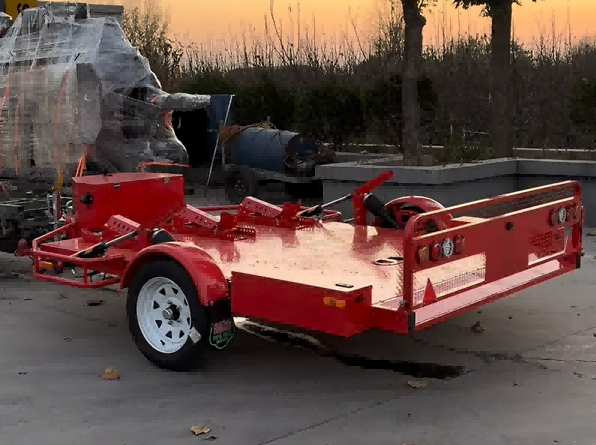

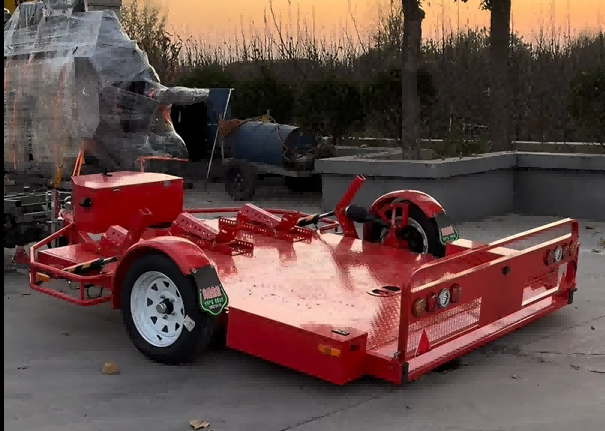

Model 190 Remote Control Hydraulic Lift 3-Bike Motorcycle Trailer

1. Product Overview

The Model 190 Big 3 Tow Trailer is a purpose-built motorcycle hauler designed to solve the biggest pain points of motorcycle transport: difficult loading, unstable towing, and complex registration compliance. Featuring a remote-controlled hydraulic lift deck, it lowers to near ground level for one-person loading, eliminating the need for heavy ramps or manual lifting. Built to meet both Chinese national trailer standards and U.S. DOT safety requirements, this trailer is fully eligible for legal registration and road use in all 50 U.S. states, with full support for our professional U.S. registration service.

With an overall length of 190mm, overall width of 2550mm, and an inner cargo bed measuring 2950mm long × 1900mm wide, it easily accommodates up to 3 full-size motorcycles, including heavy touring models like the Honda Gold Wing, Harley-Davidson Glide, and large adventure bikes. The trailer’s industry-proven design, based on Shangku Trailer’s technical standards, delivers exceptional durability, stability, and safety for both short trips and cross-country hauls.

2. Core Selling Points

✅ Remote Control Hydraulic Lift Deck: One-person ground-level loading, no heavy ramps required.

✅ U.S. Legal Registration Eligible: Fully DOT-compliant design, with professional U.S. registration service available.

✅ Independent Airbag Suspension: Delivers a smooth, stable ride on highways and rough backroads.

✅ DOT-Compliant Braking System: Electromagnetic brakes with brake synchronizer for safe, synchronized stopping.

✅ High-Strength Steel Frame: Robust construction for long-term durability and heavy-load performance.

✅ Spacious 3-Bike Capacity: Easily fits up to 3 full-size motorcycles with ample tie-down space.

✅ Waterproof & Weather-Resistant: Sealed electrical components and corrosion-resistant finish for all-weather use.

3. Full Technical Specifications

4. Design & Construction Details

4.1 Remote Control Hydraulic

Lift System (Core Innovation)The Model 190’s signature feature is its industry-proven remote control hydraulic lift system, based on Shangku Trailer’s leading technical standards. The system allows you to lower the cargo deck to near ground level with the push of a button, eliminating the need for heavy, bulky ramps. Riders can simply roll their motorcycles onto the deck, secure them with tie-down straps, then use the remote control to raise the deck to towing height—all without lifting, straining, or assistance from others.

The hydraulic system features a robust, sealed hydraulic cylinder and a waterproof remote control unit, ensuring reliable operation in all weather conditions. The lift process is smooth and controlled, with a maximum lift height of 300mm, meeting Chinese national standards for trailer lift devices (GB/T series) and providing ample ground clearance for highway towing.

4.2 Independent Airbag Suspension System

Unlike traditional leaf spring trailers, the Model 190 features independent airbag suspension—a key upgrade that delivers exceptional ride quality and stability. The airbag suspension absorbs shocks and vibrations from rough roads, potholes, and highway expansion joints, protecting your motorcycles from damage during transport. It also reduces trailer sway at high speeds, ensuring a safe, stable towing experience even when fully loaded with 3 heavy motorcycles.

The suspension system is engineered to handle the trailer’s 3300 lbs GVWR, with durable airbags and reinforced mounting points for long-term reliability. It also features adjustable ride height, allowing you to fine-tune the trailer’s stance for different loads and towing conditions.

4.3 Compliant Braking & Safety System

Safety is the top priority for the Model 190, which is fully designed to meet U.S. DOT safety standards for legal road use in all 50 states. The braking system features DOT-compliant electromagnetic brakes paired with a high-performance brake synchronizer, ensuring that the trailer’s brakes engage simultaneously with your tow vehicle’s brakes. This eliminates the risk of trailer "pushing" or "dragging" during stops, reducing stopping distances and improving overall safety.

The trailer also includes a full suite of DOT-required safety features:

· Sealed LED Lighting: DOT-approved tail lights, brake lights, turn signals, and side reflectors for maximum visibility day and night.

· Dual Heavy-Duty Safety Chains: Cross-mounted under the hitch, rated for the trailer’s full GVWR, to prevent the trailer from dragging in the event of hitch detachment.

· Heavy-Duty Tie-Down Points: 6+ reinforced D-ring tie-down points, allowing you to securely fasten up to 3 motorcycles with heavy-duty straps.

· Wheel Chocks: Integrated wheel chocks to keep motorcycles stable during loading and transport.

4.4 High-Strength Steel Frame & Durable Construction

Built to Shangku Trailer’s rigorous technical standards, the Model 190 features a fully welded high-strength carbon steel frame with reinforced cross-members. The frame is engineered to handle the stress of heavy loads and long-distance towing, with a boxed beam design for maximum rigidity and durability. The frame is finished with a corrosion-resistant powder coating, protecting it from rust, scratches, and weather damage for years of reliable use.

The cargo deck is made from anti-slip diamond plate steel, providing maximum traction for loading and securing motorcycles, even in wet or muddy conditions. The deck is fully welded to the frame, with reinforced edges and mounting points for tie-downs, wheel chocks, and other accessories.

5. Key Usage Advantages

✅ Effortless One-Person LoadingThe remote control hydraulic lift system eliminates the biggest hassle of motorcycle transport: loading heavy bikes. No more struggling with heavy ramps, lifting 800+ lb touring bikes, or asking for help. Just lower the deck, roll your bike on, secure it, and raise the deck—all by yourself, in minutes.

✅ Legal & Road-Ready in the U.S.Fully designed to meet U.S. DOT safety standards, the Model 190 is eligible for legal registration and road use in all 50 U.S. states. We also offer a professional U.S. registration service to help you complete the process quickly and easily, ensuring you can tow with confidence on any U.S. highway.

✅ Smooth, Stable Towing ExperienceThe independent airbag suspension delivers a far smoother ride than traditional leaf spring trailers, absorbing shocks and reducing sway at high speeds. Whether you’re towing on the interstate, backroads, or rough gravel roads, your motorcycles will stay stable and protected, with minimal risk of damage from bumps and vibrations.

✅ Versatile 3-Bike CapacityWith a spacious 2950mm × 1900mm cargo bed, the Model 190 easily accommodates up to 3 full-size motorcycles, from heavy touring bikes to sport bikes and adventure bikes. It also works great for hauling ATVs, UTVs, and other small equipment, making it a versatile hauler for all your outdoor adventures.

✅ Low Maintenance & Long-Term DurabilityBuilt with high-quality components and a robust steel frame, the Model 190 requires minimal maintenance. The sealed hydraulic system, waterproof electrical components, and corrosion-resistant finish ensure reliable operation for years, even in harsh weather conditions. The modular design also makes it easy to service and replace components if needed, reducing downtime and repair costs.

6. Application Scenarios

· Cross-Country Motorcycle Tours: Safely haul your bikes to remote riding destinations across the U.S. and Canada.

· Track Days & Rallies: Transport your sport or race bikes to the track, rallies, and meetups without the risk of damage.

· Motorcycle Recovery & Rescue: Use as a mobile recovery trailer for broken-down motorcycles on the road or trail.

· Dealer & Repair Shop Transport: Ideal for motorcycle dealerships and repair shops to transport bikes between locations.

· Recreational Adventures: Haul your bikes to trailheads, campgrounds, and riding events with ease.

· Multi-Bike Group Rides: Perfect for group rides, allowing you to haul up to 3 bikes for you and your riding partners.

7. FAQ

Q: Is the Model 190 legal for registration and road use in the United States?

A: Yes! The Model 190 is fully designed to meet U.S. DOT safety standards, including FMVSS requirements for lighting, braking, and safety equipment. It is eligible for legal registration and road use in all 50 U.S. states, and we offer a professional U.S. registration service to help you complete the process.

Q: How many motorcycles can the Model 190 carry?

A: It is designed to carry up to 3 full-size motorcycles, including heavy touring models like the Honda Gold Wing and Harley-Davidson Glide. The spacious cargo bed and multiple tie-down points provide ample space and security for multiple bikes.

Q: How does the remote control hydraulic lift system work?

A: The system uses a waterproof remote control to operate a sealed hydraulic cylinder, which lowers the cargo deck to near ground level for loading. Once your bikes are secured, you use the remote to raise the deck to towing height. The system is fully sealed and waterproof, ensuring reliable operation in all weather conditions.

Q: What is the maximum payload capacity of the trailer?

A: The trailer has a gross vehicle weight rating (GVWR) of 3300 lbs (1500 kg), with a maximum payload capacity of 2315 lbs (1050 kg). This is more than enough to carry 3 heavy touring motorcycles, fuel, and accessories.

Q: What kind of maintenance does the trailer require?

A: The trailer requires minimal routine maintenance: regular checks of the tire pressure, brake adjustment, hydraulic fluid level, and electrical connections. The sealed hydraulic system and corrosion-resistant finish ensure long-term reliability with minimal upkeep.

Q: Can the trailer be customized?

A: Yes! We offer a range of customization options, including custom paint colors, additional tie-down points, upgraded suspension, and more. Contact us to discuss your specific customization needs.

The Model 190 Remote Control Hydraulic Lift 3-Bike Motorcycle Trailer from Whole Chain Tech sets a new standard for motorcycle transport. Combining industry-leading remote control hydraulic lift technology, DOT-compliant safety features, independent airbag suspension, and a robust high-strength steel frame, it delivers the ultimate combination of convenience, safety, and reliability. Whether you’re a casual rider, a cross-country tourer, or a professional motorcycle transporter, this trailer is designed to meet your needs, with full legal eligibility for road use in the United States and a professional registration service to make the process seamless.
