Multi-Application Trailer is an unpowered wheeled vehicle designed to be towed by a powered motor vehicle (such as a pickup, truck, or SUV). It is engineered for transporting a wide range of goods, equipment, vehicles, or materials, featuring a sturdy, durable frame and versatile loading configurations to meet diverse transportation needs across logistics, outdoor activities, construction, and industrial applications. From our state-of-the-art factory, Whole Chain Tech engineers these specialty models to address unique needs that generic utility trailers cannot meet, including:
● Pet Trailers
● Solar Energy Storage Trailers
● Truck Campers Shell

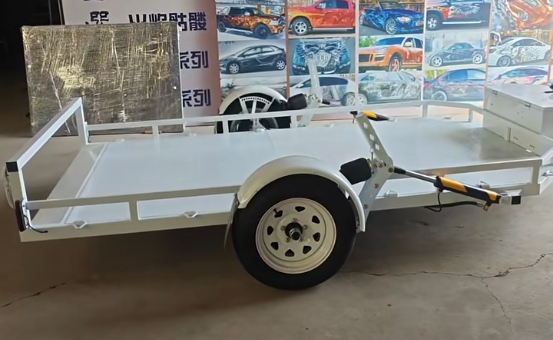

● Custom Utility Trailers

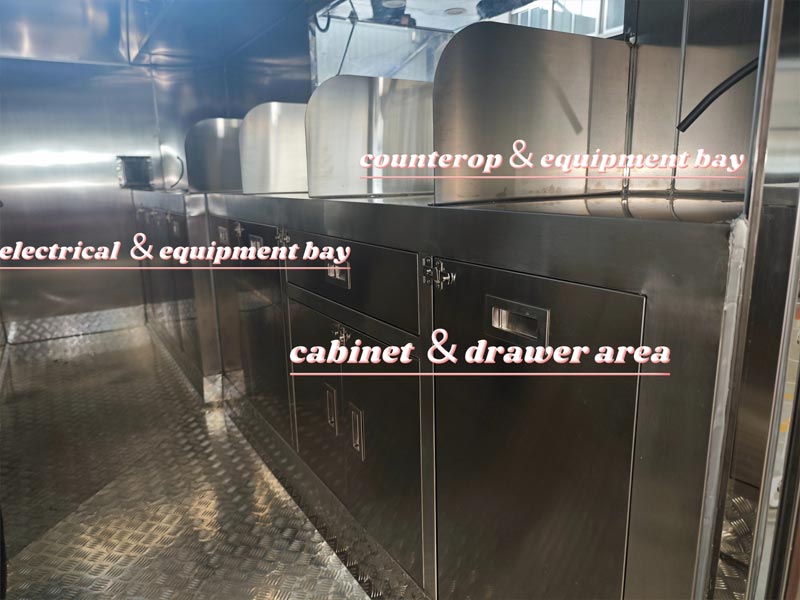

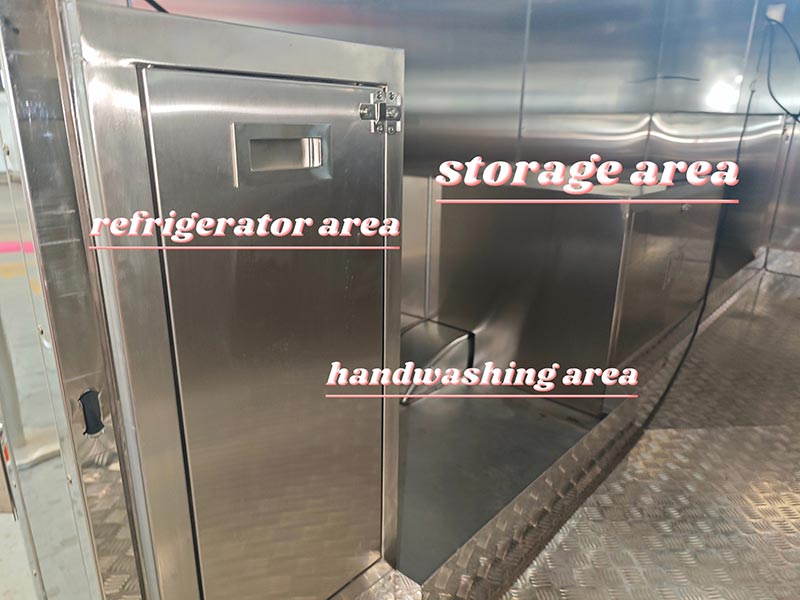

● Food Trailer
Our multi-application trailers are built on a modular platform for easy customization and maintenance:
● Modular Structure: Interchangeable panels, frames, and components allow quick reconfiguration for different use cases (e.g., converting a utility trailer to a pet trailer).

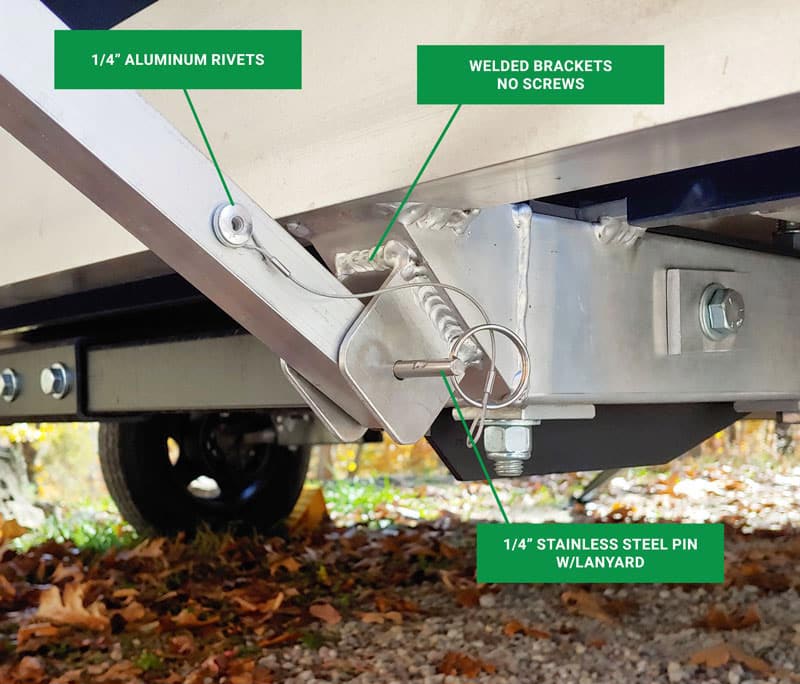

● Easy Repairs: Bolt-together construction (instead of permanent welds) for accessible part replacement, reducing downtime and repair costs.

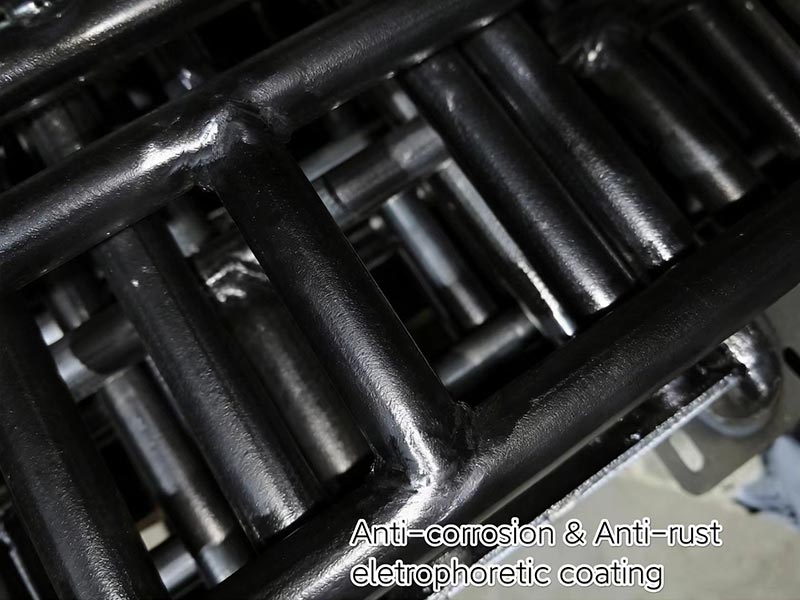

● High-tensile steel frame: 4mm thick, hot-dip galvanized for corrosion resistance (ideal for coastal and salt-spray environments).
● Optional upgrade: Lightweight aluminum alloy frame (30% lighter than steel) for improved fuel efficiency and payload capacity.

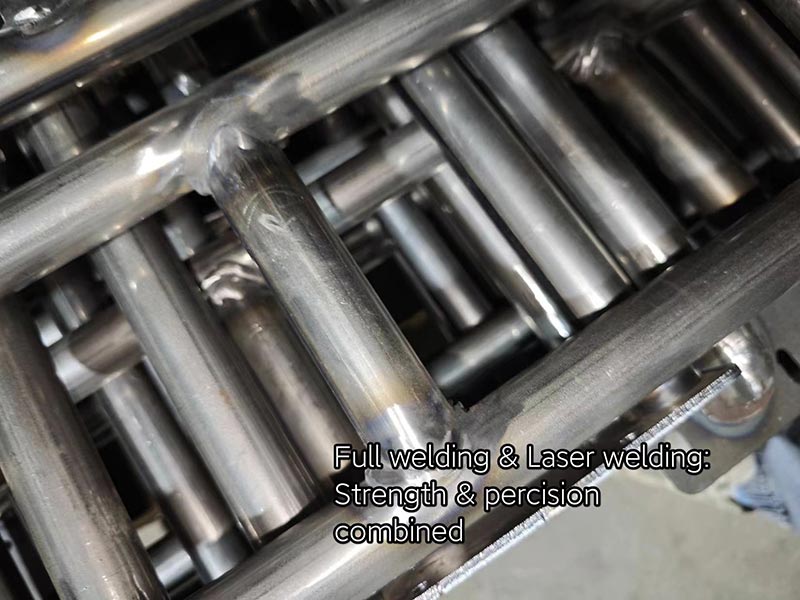

Expert manual MIG/MAG welding: Every weld is executed by hand, backed by strict process specifications and premium materials/equipment. This ensures consistent, smooth, robust joints with 100% penetration, delivering lasting structural strength and a premium finish.
| Property | Specification | Benefit |
| UV Resistance | UV-stabilized HDPE/FRP exterior panels | Fade-resistant for 5+ years of outdoor use |
| Impact Resistance | 2.5mm thick steel side guards | Withstands minor collisions without permanent deformation |
| Corrosion Resistance | Hot-dip galvanized frame + powder coating | 5-year warranty against rust-through |
● ISO 9001 / IATF 16949 Certified Quality: LED taillights, brake lights, turn signals, and side marker lights
● Reflective striping: 3M Scotchlite reflective tape (FMVSS 108 compliant) for 360° visibility at night.
● License plate bracket: Integrated, illuminated bracket for legal road use.

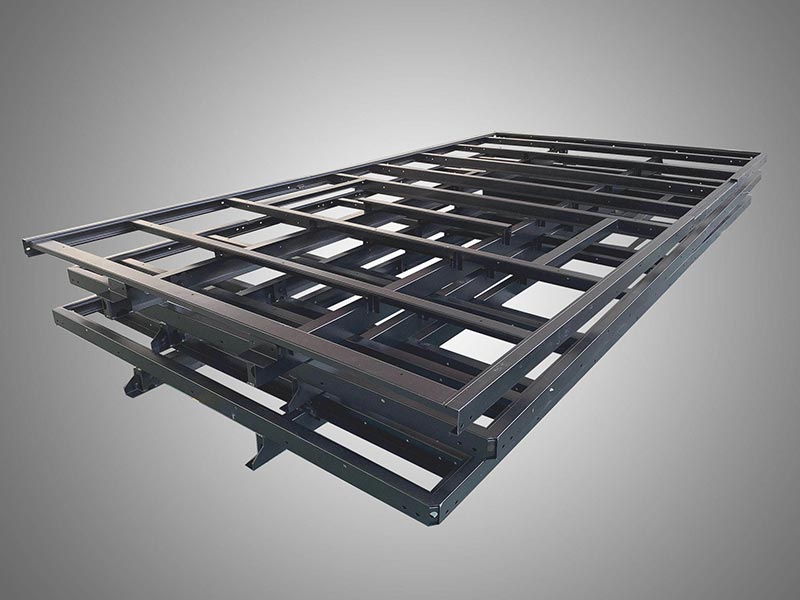

● Triangular truss design: Reinforced cross-members to distribute weight evenly, preventing frame bending or fracture.
● Low center of gravity: Optimized axle placement and payload distribution to reduce rollover risk during high-speed turns or uneven terrain.
| Component | Specification | Rating |
| Coupler | Forged steel A-frame coupler | Class III (5,000 lbs GTW) |
| Safety Chains | Grade 80 steel chains | 2x the trailer’s rated load capacity |
| Breakaway Switch | Electronic breakaway system | Activates brakes if trailer detaches from tow vehicle |
● Standard tires: ST205/75R15 radial tires (Load Range C, 1,820 lbs per tire, speed rating L (75 mph)).
● Upgrade option: Heavy-duty ST225/75R15 tires (Load Range D, 2,150 lbs per tire, speed rating L).
● IP65-rated electrical enclosures: All wiring and connections are sealed against dust and water ingress.
● Sealed battery compartments: For solar/electric models, battery banks are housed in watertight, vented enclosures to prevent short circuits.
● Drainage system: Integrated floor drains to channel water away from sensitive components.
● Universal hitch compatibility: Works with Class II, III, and IV hitches on most compact cars, SUVs, and full-size pickups.
● Weight distribution: Adjustable tongue jack ensures balanced load transfer for stable towing.
● One-person operation: Lightweight design and spring-assisted latches allow single-person setup and teardown in under 10 minutes.
● Foldable/portable options: Select models feature collapsible frames for compact storage in garages or truck beds.
● Independent parking: Stabilizer jacks and a tongue jack enable secure, level parking without a tow vehicle.

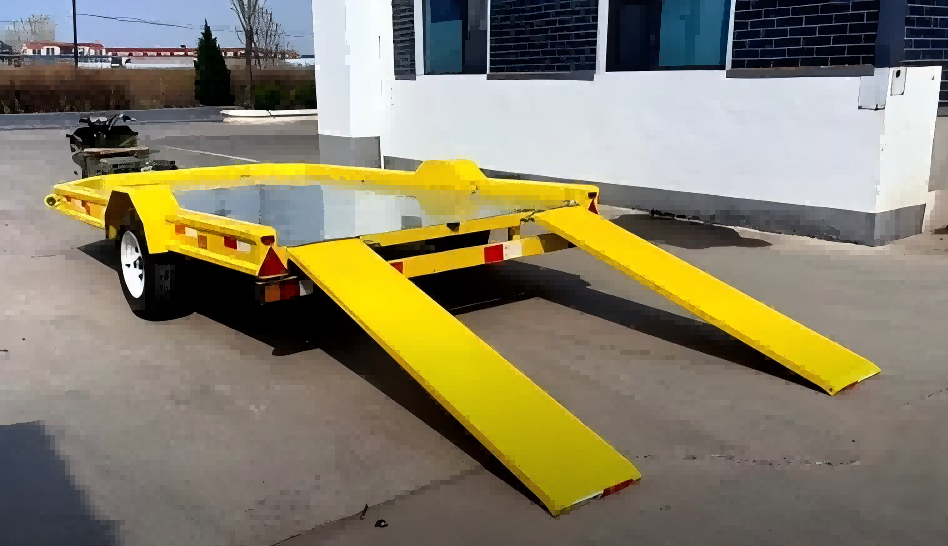

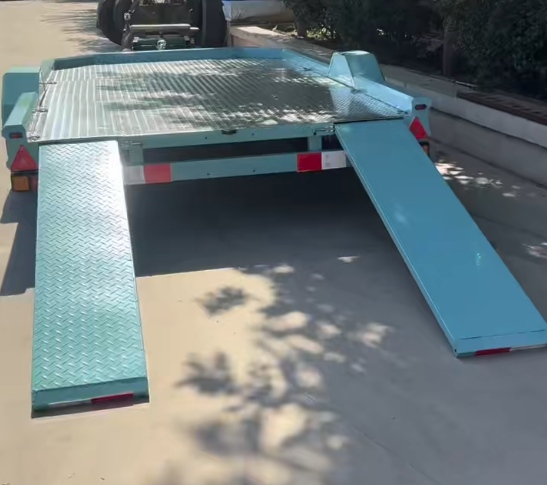

● Easy loading: Low-profile ramps and wide entry doors simplify cargo/pet access.
● Internal securement: Heavy-duty E-track tie-down rails (1,000 lbs per foot) and D-ring anchors for cargo stability.
● Accessory upgrades:
○ Windows (tempered glass, screened)
○ Side/rear entry doors (locking, weather-sealed)
○ Foldable access ladders
○ Lockable toolboxes
○ Spare tire mounts
● Solar/electric expansion: Pre-wired for solar panels (up to 400W), deep-cycle batteries (up to 200Ah), and pure sine wave inverters (1,000–3,000W).
● Sleek, modern lines: Aerodynamic profiles reduce wind resistance and enhance visual appeal.
● Premium color palette: Matte black, metallic silver, and custom RAL color options for a professional, Instagram-worthy look.
● Minimalist branding: Clean, understated logos that prioritize function without sacrificing style.
● Spare parts availability: All critical components (tires, lights, couplers) are in stock for 24-hour shipping.
● Warranty: 3-year limited warranty on frame and structural components, 1-year on electrical and accessory parts.
● Service network: We have an office in the United States for on-site support.
Beyond their core uses, our specialty trailers offer exceptional versatility when paired with compatible truck bodies—such as our FRPSkin Lite Dry Truck Body and XPS Refrigerated Truck Body—unlocking endless customization possibilities for North American users.By integrating our trailers with custom-built or standard cargo enclosures, you can easily transform them into practical, functional spaces tailored to your unique needs, such as recreational campers (RVs), mobile workstations, tiny homes, or specialized transport units. This flexibility allows you to maximize the value of your trailer, adapting it from a utility tool to a lifestyle or work companion, all while maintaining the same industry-leading safety, durability, and compliance that define our products. Whether you’re seeking a compact travel trailer for weekend getaways or a mobile workspace for on-site jobs, our specialty trailers serve as a reliable foundation for any cargo body integration, designed to meet the diverse demands of the North American market.
