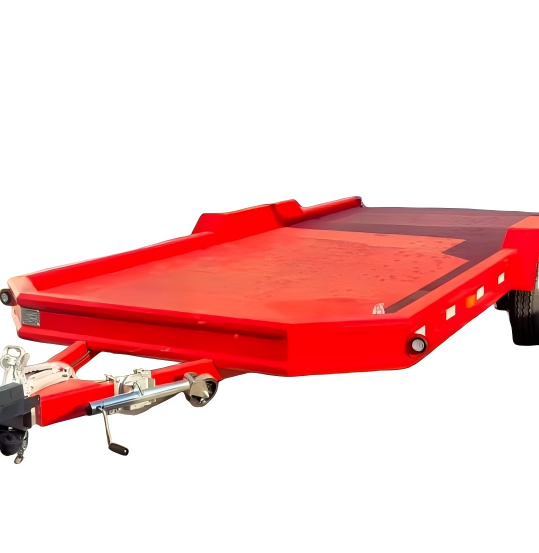

Wholechaintech presents our extended-length Dual Axle Flatbed Trailer — built for customers who need more deck space. With a full 5.0m × 2.07m (16.4ft × 6.8ft) platform, this model offers significantly more cargo area than standard compact trailers. Whether you are hauling long construction materials, transporting horses with custom fencing, or deploying heavy equipment, this trailer delivers the extra length and width you need. Like all Wholechaintech trailers, it features electrophoretic + powder coated finish for maximum corrosion resistance, a heavy-duty folding rear ramp, and full DOT-compliant LED lighting.
43% More Deck Space Compared to standard 3.5m × 1.8m models, this 5.0m × 2.07m deck gives you nearly 43% more usable area — ideal for longer cargo like lumber, pipes, and multiple livestock pens.
Long Load Friendly The extended 5m deck handles materials up to 6m with the ramp down — perfect for steel beams, scaffolding, boat hulls, and construction materials.
Red Finish (Standard) Available in bold red as standard (shown) or any custom RAL color to match your fleet or brand identity.
Full Multi-Configurable Same versatile design as our compact model — add fence sides for horse transport, a platform deck for drone operations, or leave open for general flatbed hauling.
Reinforced Long-Span Frame Extended frame features additional cross-member reinforcement to maintain rigidity and prevent sagging under heavy loads over the longer span.
| Feature | Compact Model (previous) | Extended Model ★ NEW |
| Deck Size | 3.5m × 1.8m (11.5' × 6') | 5.0m × 2.07m (16.4' × 6.8') ← THIS MODEL |
| Deck Area | 6.3 sqm (69 sqft) | 10.35 sqm (111 sqft) ↑ 64% more area |
| Payload Capacity | 3,000 kg / 6,600 lbs | 3,000 kg / 6,600 lbs |
| Axles | Tandem (2 axles) | Tandem (2 axles) — reinforced spacing |
| Best For | Compact loads, ATVs, drones | Long materials, heavy equipment, multiple horses |
| Specification | Details |
| Model | WH-3T-DA-LD |
| Type | Dual Axle Long Deck Flatbed Utility Trailer |
| Payload Capacity | 3,000 kg / 6,600 lbs |
| Deck Size (Inner) | 5.0m × 2.07m (16.4ft × 6.8ft) |
| Overall Length | ~6.5m (21.3ft) including ramp |
| Overall Width | 2.3m (7.5ft) |
| Deck Height (Ground to Deck) | ~0.8m (31 inches) — easy loading height |
| Axles | 2 axles (tandem, reinforced spacing for long deck) |
| Tires | Heavy-duty radial tires × 4 + 1 spare |
| Suspension | Semi-elliptical leaf springs |
| Ramp | Heavy-duty folding ramp, full-width, rated for 3 tons |
| Ramp Length | 1.5m (5ft) — gentle loading angle |
| Surface Treatment | Electrophoresis (E-coat) + powder coating |
| Frame Material | High-strength steel, welded with cross-member reinforcement |
| Standard Color | Red (customizable — any RAL color) |
| Coupler | 2" / 50mm adjustable ball hitch |
| Lighting | Full LED — tail lights, turn signals, brake lights, reflectors (DOT) |
| Safety | Breakaway switch + safety chains + side reflectors |
| Tie-Downs | Built-in D-rings × 8 (4 per side) + stake pockets |
| Jack | Side-wind tongue jack included |
| Spare Tire | Spare tire mount with winch carrier |
Construction & Material HaulingThe extra-long 5m deck easily accommodates lumber (5m+), steel pipes, rebar bundles, scaffolding, roofing panels, and palletized goods. Tie-down D-rings spaced every 600mm along both sides.
Horse & Livestock TransportAdd optional steel fence sides (removable) to convert into a spacious horse trailer. The 2.07m width comfortably accommodates two horse stalls side-by-side. Anti-slip rubber mat flooring available.
UAV / Drone Launch PlatformAdd an optional platform extension for a stable drone launch and landing surface. The long deck provides ample space for control stations, battery charging, and field equipment.
ATV / UTV / Equipment CarrierLoad ATVs, UTVs, zero-turn mowers, tractors, and skid steers via the folding ramp. The extra length allows side-by-side loading or one long machine without overhang.
Multi-Pallet FreightWith 10.35 sqm of deck space, this trailer can carry up to 4 standard EUR pallets (1.2m × 0.8m) with room to spare — ideal for warehouse logistics and freight forwarding.
| Accessory | Description |
| Removable Livestock Fence Sides | Galvanized steel panels with slide-in mounting |
| Drone Launch Platform Kit | Flat elevated platform with non-slip surface |
| Rubber Horse Mat Flooring | 3/8" thick anti-fatigue rubber matting |
| Brake System Upgrade | Electric brakes or hydraulic surge brakes |
| Spare Wheel & Tire | Matching spare with under-deck winch mount |
| Toolbox | Lockable diamond plate steel box, tongue-mounted |
| Custom Logo & Decals | Your branding applied to both side panels |
| Removable Side Boards | Wood or aluminum side boards for bulk material hauling |
| LED Light Bar | Rear-facing LED work light for night operations |
| Chock Blocks & Tie-Downs | Heavy-duty wheel chocks + ratchet strap kit |
✅ 15+ years of trailer and truck body manufacturing experience
· ✅ 34+ skilled professionals — in-house welding, assembly, and finishing
· ✅ Full production chain: stamping → welding → surface treatment → assembly
· ✅ E-coat + powder coating line — superior corrosion protection
· ✅ Custom orders welcome — size, color, accessories, branding
· ✅ Export-ready — FOB/CIF shipping, full documentation support
· ✅ Quality control: load test, lighting test, road test before shipment
