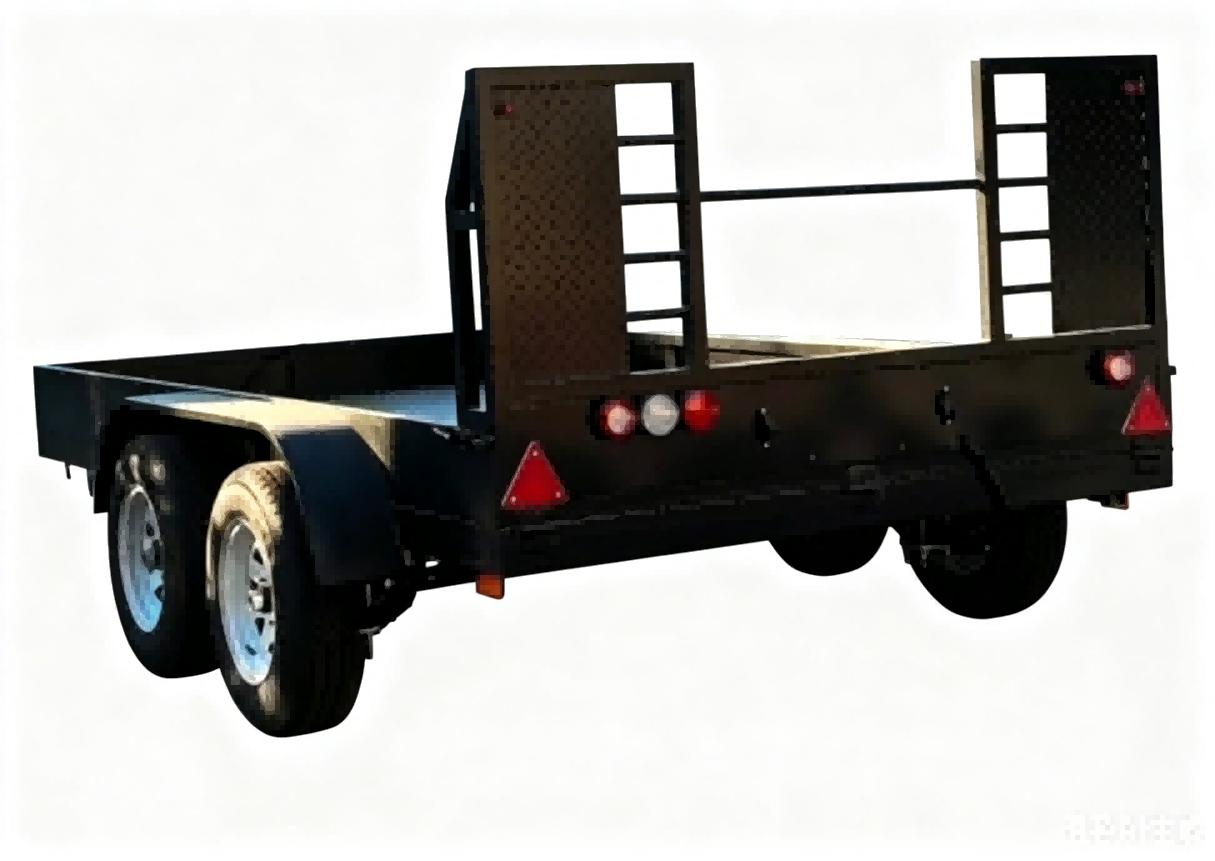

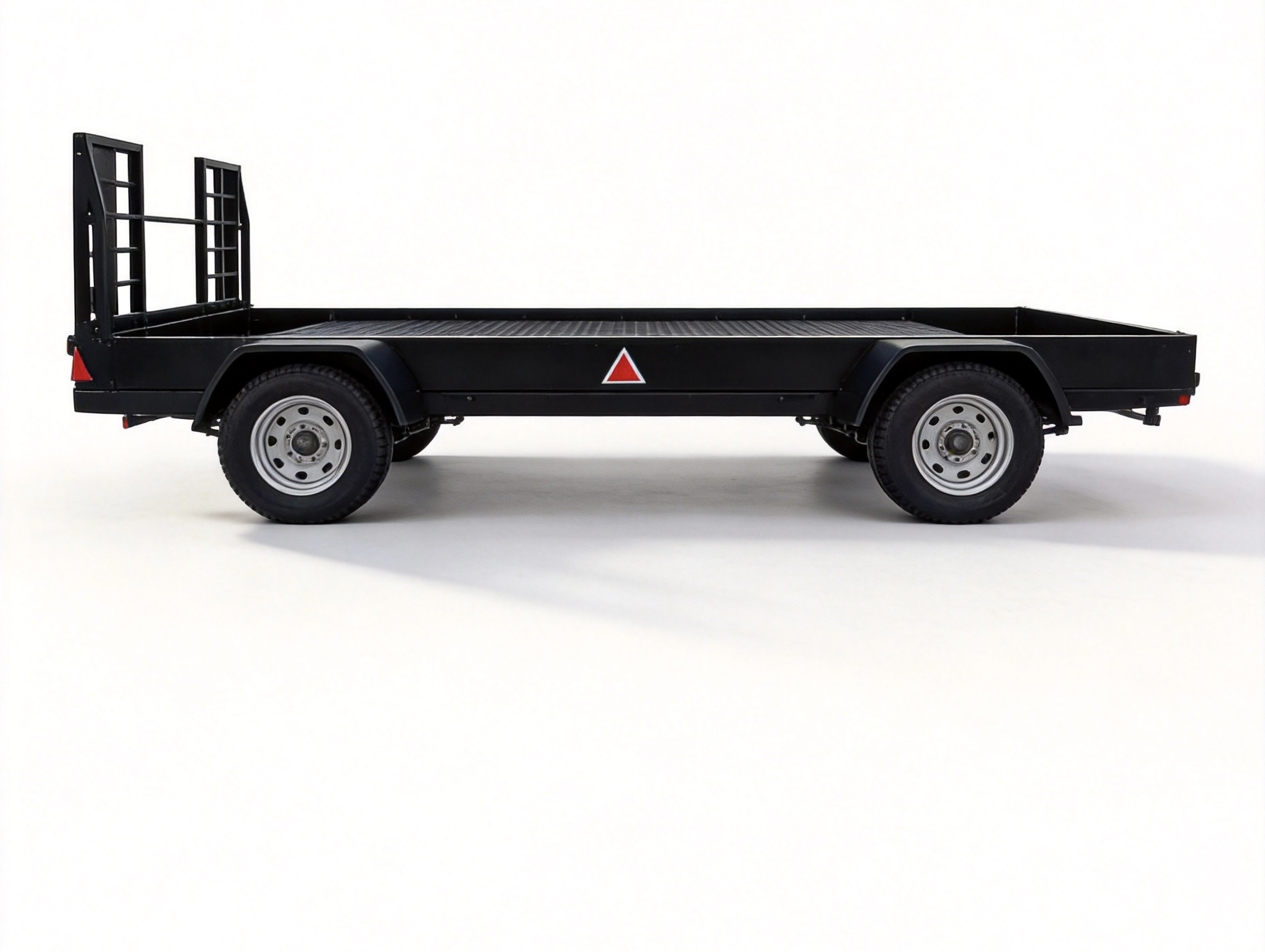

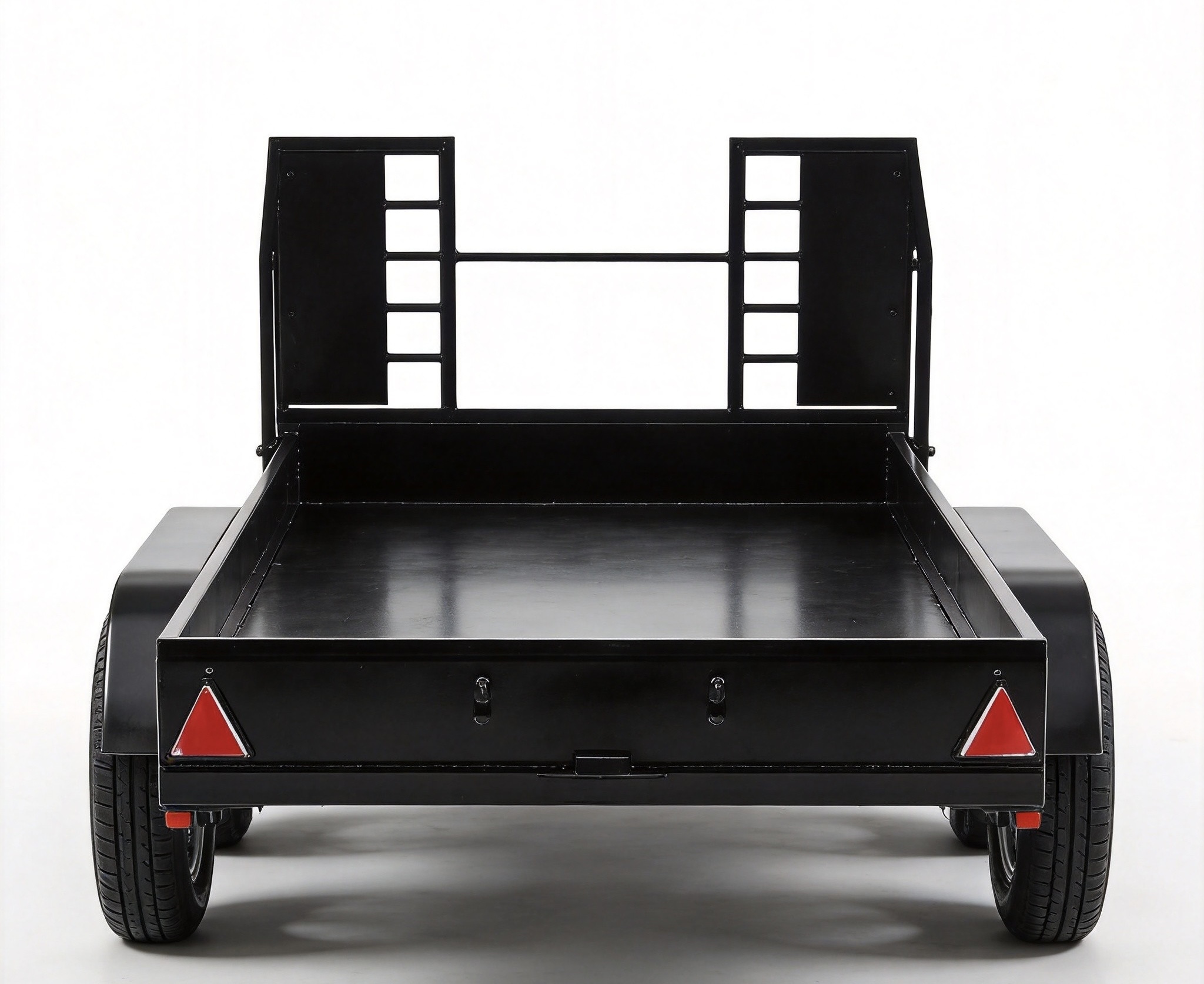

Whether you need to haul construction materials, transport horses with removable fence sides, or deploy a drone launch platform in the field, 3 Ton Dual Axle Flatbed Trailer with Ramp meets all your demand.Built with a rugged steel frame, electrophoretic + powder coated finish for maximum corrosion resistance, and a heavy-duty folding ramp at the rear for easy loading and unloading.
⚡ 3 Ton Capacity Haul up to 3 tons (6,600 lbs) of equipment, materials, or livestock
Dual Axle Stability Tandem axle design for smooth towing and even weight distribution
3.5m × 1.8m Deck Spacious 11.5ft × 6ft flatbed for versatile cargo configurations
Customizable Color Available in any RAL color — match your fleet or brand identity
Heavy-Duty Ramp Foldable rear ramp for easy loading of vehicles, machinery, and equipment
Multi-Configurable Convert from flatbed to horse trailer, drone platform, or material hauler
| Specification | Details |
| Model | WH-3T-DA-FT |
| Type | Dual Axle Flatbed Utility Trailer |
| Payload Capacity | 3,000 kg / 6,600 lbs |
| Deck Size (Inner) | 3.5m × 1.8m (11.5ft × 6ft) |
| Overall Length | ~5.0m (16.4ft) including ramp |
| Overall Width | 2.0m (6.6ft) |
| Axles | 2 axles (tandem) |
| Tires | Heavy-duty radial tires (specify size by order) |
| Suspension | Leaf spring suspension with shock absorbers |
| Ramp | Foldable steel ramp at rear, weight-rated for 3 tons |
| Surface Treatment | Electrophoresis (E-coat) + powder coating — anti-corrosion |
| Frame Material | High-strength steel, welded construction |
| Color | Customizable (any RAL color) |
| Coupler | Adjustable ball hitch coupler (2" / 50mm standard) |
| Lighting | Full LED tail lights, turn signals, reflectors (DOT compliant) |
| Safety Chains | Included with breakaway system |
| Spare Tire | Spare tire mount included |
| Jack Stand | Side-wind tongue jack included |
1️⃣ Material Hauling (Standard)
Default Mode Use as a flatbed for construction materials, lumber, pipes, steel beams, pallets, and heavy equipment. The flat steel deck provides a stable platform with tie-down points.
2️⃣ Horse Transport (with Removable Fence Sides)
Add Fence Sides Install removable steel fence panels (optional) to convert into a horse trailer. Ventilation gaps between panels ensure airflow. Non-slip rubber matting available for flooring.
3️⃣ Drone Launch Platform (with Flat Deck Extension)
Add Platform Deck Add a flat platform extension (optional) to create a stable, elevated launch and landing pad for UAVs and drones. Ideal for agricultural surveying, aerial photography, and field operations.
4️⃣ ATV / UTV Carrier
ATV Mode Load ATVs, UTVs, dirt bikes, or lawn equipment directly via the folding ramp. The dual-axle design handles heavy loads with confidence.
The trailer frame is constructed from high-strength structural steel, welded by certified welders for maximum durability and longevity.
Every unit receives full electrophoretic (E-coat) primer followed by powder top coating. This dual-layer protection system provides superior rust and corrosion resistance — even in humid or coastal environments.
Two axles distribute weight evenly, reducing tongue load and providing a smoother, more stable tow. Each axle is rated to handle the full 3-ton capacity.
The heavy-duty ramp folds up for transport and folds down for loading. Rated for the full 3-ton load capacity. Anti-slip surface for safe loading in wet conditions.
Multiple heavy-duty D-rings and stake pockets around the deck perimeter for securing cargo with straps or chains.
DOT-compliant LED tail lights, brake lights, turn signals, and side markers. Weather-sealed connectors for reliable operation.
| Accessory | Description |
| Removable Fence Sides | Steel fence panels for horse/livestock transport |
| Drone Launch Platform | Flat elevated platform for UAV takeoff/landing |
| Rubber Floor Matting | Non-slip rubber mat for horse or equipment transport |
| Spare Tire Kit | Additional spare wheel and tire assembly |
| Toolbox | Lockable steel storage box mounted on tongue |
| Brake System | Electric or surge brake option for increased towing safety |
| Custom Branding | Your logo and fleet graphics applied to trailer sides |
| Tie-Down Straps | Ratchet strap kit with D-ring anchors |
✅ 34+ skilled professionals — experienced in OEM supply for global brands
· ✅ Full in-house production — stamping, welding, assembly, roll forming, tube bending
· ✅ Advanced surface treatment — electrophoretic line + powder coating booth
· ✅ Custom orders welcome — dimensions, color, accessories, branding
· ✅ Export-ready packaging and documentation — FOB/CIF available
· ✅ Quality tested before shipment — load test, lighting test, road test
