FRPSkin Max Dry Truck Body

FRPSkin max dry truck body uses industrial-grade PU raw materials with a density of 40kg/m³.This means your cargo will stay secure even on bumpy roads, and the truck body will resist deformation for years, cutting your maintenance costs. The high-pressure injection process creates a dense, monolithic foam core that resists compression and deformation even under heavy cargo loads.

✅ Ideal for: Large trunk line logistics enterprises, engineering transportation fleets under large-scale logistics groups, cross-border logistics service providers, and heavy-duty cargo transportation enterprises, especially suitable for long-haul, heavy-duty and high-frequency trunk transportation business.

✅ Core Scenarios: Widely used in building materials transportation, industrial equipment transfer, heavy parts transportation, cross-border trunk logistics and other scenarios. It can cope with bumpy road conditions and complex weather during long-haul transportation.

Product Performance

King of All-Round Performance

● Excellent thermal insulation performance: Extremely low thermal conductivity (≤0.022 W/(m·K)).

● Lightweight design: 30%-40% lighter than traditional metal structures.

● High strength: Excellent compressive strength (≥150 kPa) enhances structural rigidity.

● Seamless filling: Liquid foam fills complex shapes and corners to eliminate thermal bridges.

● Moisture resistance: 90%-95% closed-cell structure ensures low water absorption and stable performance.

Our Solutions

In response to the above core scenarios, our FRPSkin max dry truck body, with "cost optimization, flexible adaptation and reliable protection" as the core, converts product performance into tangible operational value to accurately solve your distribution problems:

- ✅ Heavy-duty Support: High-density, void-free foam with strong structural rigidity, capable of bearing a uniform load of 3000kg/m².
- ✅ Impact Resistance: Passed over 10,000 vibration fatigue tests, resisting deformation and damage on bumpy roads.
- ✅ Leakage Prevention: Seamless high-pressure molding prevents rainwater and dust from infiltrating the carriage.

The Manufacturing Edge Behind Superior Performance

Our promises are backed by precision engineering and stringent control.

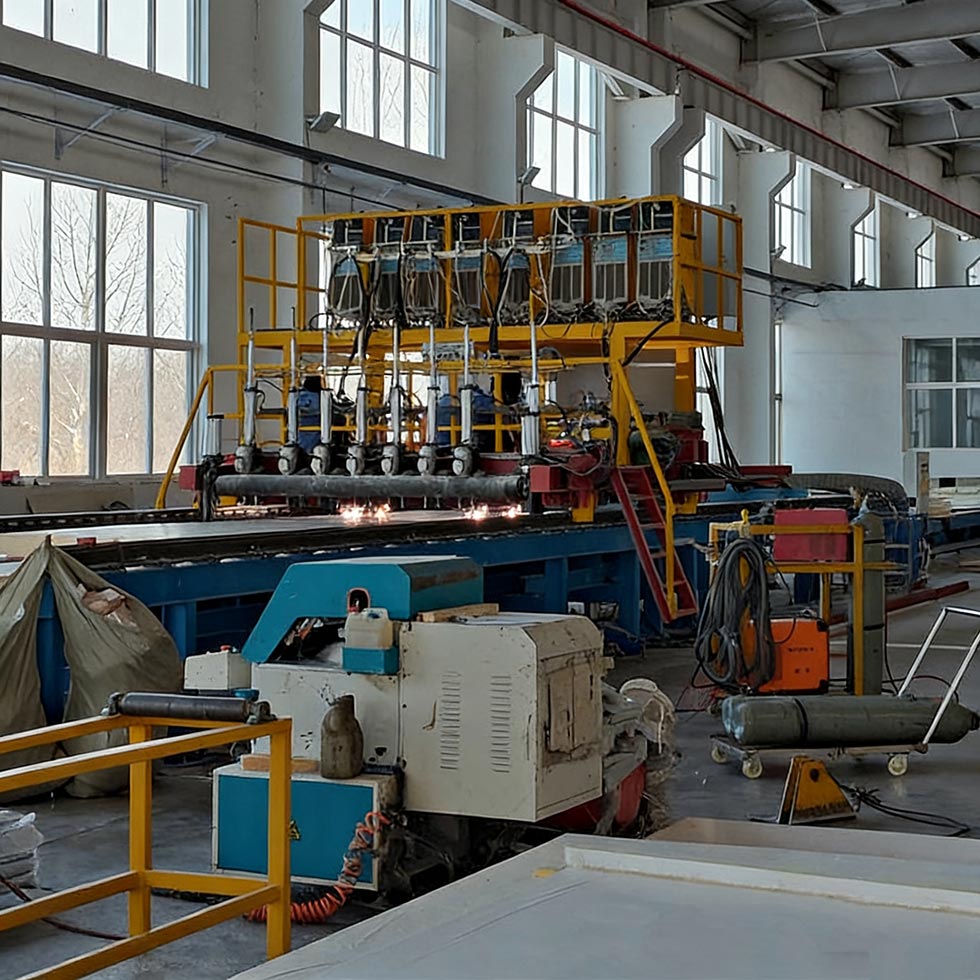

Advanced High-Pressure Process: Unlike conventional methods, our high-pressure injection ensures a perfectly uniform cell structure within the 40-45 kg/m³ PU foam, guaranteeing consistent density and eliminating weak spots.

Rigorous Quality Assurance: From industrial-grade raw materials to finished panels, every step undergoes strict inspection. We utilize FRP for superior corrosion resistance and subject our products to exhaustive performance testing.

Proven Industry Experience: Since 2009, we have been a trusted supplier to renowned automotive brands, building a deep understanding of the quality and reliability required in commercial transportation.

Supplementary Technical Parameters

All specifications are customizable, including panel dimensions and interior finishes to match your specific chassis and operational needs.The following are popular size references.

Body of Light Duty Dimension

Body of Heavy Duty Dimension

Customization & Your Next Step

Your operation is unique. Our solution is flexible.

Full Customization: We tailor panel sizes, door openings (roll-up, swing), interior linings, and locking mechanisms to fit your exact truck model and functional requirements.

Complete Kits for Easy Assembly: We supply precisely drilled, numbered panel kits with necessary hardware, enabling efficient local assembly anywhere in the world, saving you substantial shipping costs.

Direct Manufacturer Support: Work directly with our engineering team for technical drawings, layout optimization, and after-sales support.
