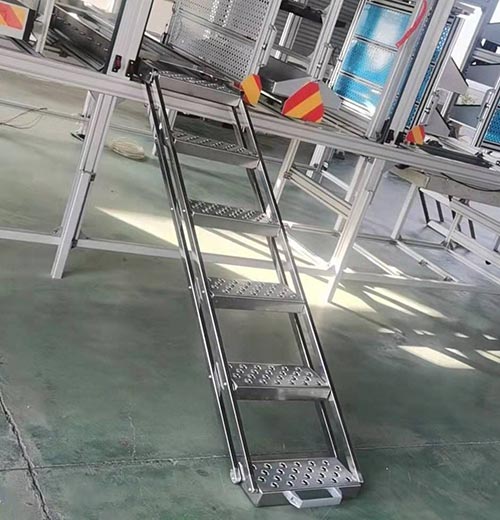

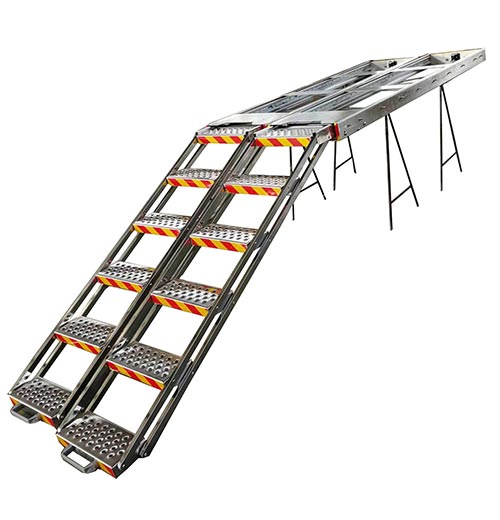

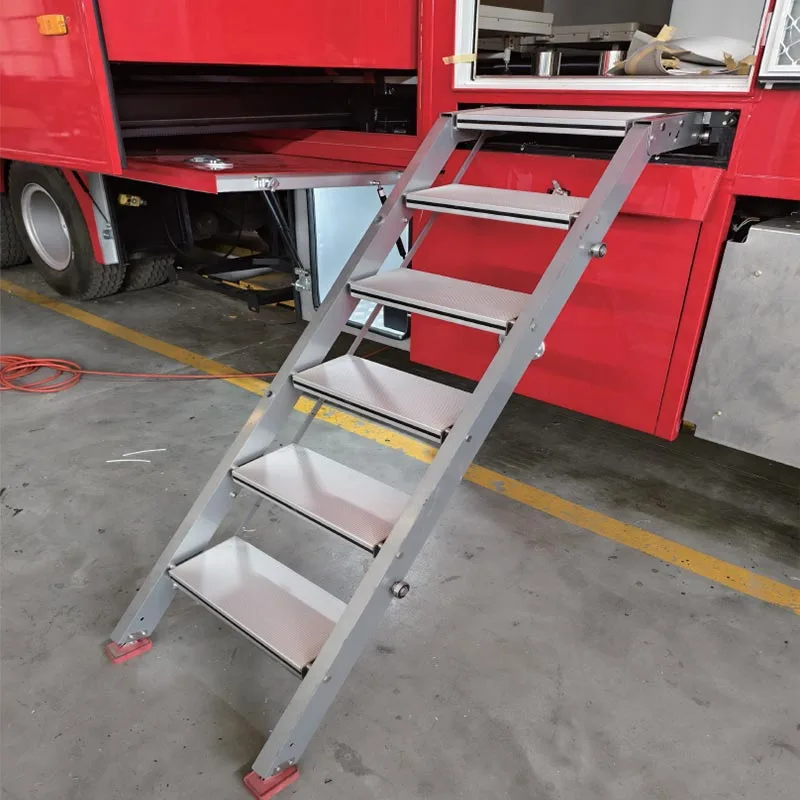

Whole Chain Tech's aluminum alloy Pull-out Truck Access Ladder is an integrated boarding solution designed for a wide range of high-ground-clearance vehicles, including vans, trucks, RVs, and special-purpose work vehicles. It is particularly well-suited to the mainstream high-roof vans and heavy-duty trucks in the North American market, delivering a true "hidden storage + one-click boarding" experience that keeps daily operations fast and efficient.
| Vehicle/Body Type | Key Internal Cargo Dimensions (Reference) | Recommended Ladder Series | Retracted Ladder Length (Key Matching Parameter) | Approx. Maximum Working Height of Ladder | Rated Load Capacity of Ladder |
|
Light-duty Truck (e.g. Transit, Iveco) |
Internal length: 12' - 20' (3.66m - 6.10m) Internal height: 82" (2.08m) Internal width: 94.5" (2.40m) |
Urban Elf Series (Light-duty Multi-functional Ladder) |
12ft model: ≤ 3.60m 16ft model: ≤ 4.85m 20ft model: ≤ 5.80m |
5.5m - 11.0m (Increasing by model) |
150kg |
|
Heavy-duty Box Truck (Large box truck, Engineering vehicle) |
Internal length: 16' - 26' (4.88m - 7.92m) Internal height: 94" (2.39m) Internal width: 96" (2.44m) |
SkyLift Heavy Industry Series (Heavy-duty Industrial Ladder) |
18ft model: ≤ 5.50m 22ft model: ≤ 6.70m 26ft model: ≤ 7.90m |
8.0m - 14.5m (Increasing by model) |
200kg |
| Structural Components | Technical Features & Materials | Core Advantages (Data/Functional) |
| Telescopic Locking System | Dual-Spring Automatic Latch | Safe and Reliable: Each section is independently locked; the latch strength shows no attenuation after 5000 fatigue tests. Easy Operation: One-key release, single person can complete deployment and retraction within 60 seconds. |
| Joint Hinge | High-Strength Forged Steel Bearing Hinge | Sturdy and Durable: Load-bearing hub with an opening and closing life of more than 20,000 times. Multi-Form: Supports multiple transformations such as straight ladder, A-frame ladder, step mode, scaffolding platform, etc. |
| Pedals & Ladder Feet | Anti-Slip Patterned Pedals + Adjustable Anti-Slip Feet Pads | Safe and Anti-Slip: Pedal friction coefficient ≥ 0.8 for reliable anti-slip performance. Ground Adaptability: Foot pads can be rotated and adjusted to adapt to uneven ground and maintain stability. |
| Vehicle-Mounted Fixing Interface | Integrated E-track/Z-track Locking Points | Firm Fixation: Can be directly locked with the truck logistics track system to achieve zero-shake transportation. Quick Loading & Unloading:Unique buckle design, fixing or removing takes only 30 seconds. |
Check all structural components (Ladder Column Main Body, Telescopic Locking System, etc.) for completeness and no damage; ensure a flat, stable assembly site; prepare auxiliary tools (hex wrench, screwdriver if needed).
Step 1: Align and insert ladder column sections until the dual-spring latch locks in place; confirm no loosening.
Step 2: Install joint hinges and anti-slip pedals, ensuring firm fixation and flexible hinge rotation.
Step 3: Attach adjustable anti-slip feet and E-track/Z-track locking points, lock with safety buckles.
Step 4: Extend the ladder to inspect locking, pedal stability and one-key release function; verify safety performance.
Key Notes：Do not use damaged components; tighten all fasteners; lock to truck track for vehicle-mounted use; perform regular maintenance (cleaning, lubrication) after assembly.
● High-Grade Aluminum Alloy: Lightweight (60% lighter than steel/stainless steel), rust-proof, corrosion-resistant, ideal for outdoor/coastal/humid working environments, higher strength-to-weight ratio than stainless steel ladders, no extra vehicle payload burden.
● Anti-slip Perforated Steps: Non-slip, drainable, dust-resistant, easy to clean.
● Matte/Brushed Finish: Modern, aesthetic, no heavy industrial look; scratch-resistant and fade-resistant coating for long-term appearance retention.
● Telescopic/Folding: Fully retractable, wall/cabinet storable; stable inclined ladder, >150kg load capacity with lightweight build for easy handling.
● Wall-mounted/Recessed: Invisible when idle, one-click pull-out, more space-saving than traditional ladders; compact retraction design fits all van/truck cargo space constraints.
● Weldless/One-piece (High-end): Sturdier, higher load-bearing, sleeker appearance; aluminum alloy’s excellent formability ensures seamless one-piece structure with no weak weld points.
● One-click Telescopic/Locking: Easy for seniors/women, auto-lock prevents accidental retraction; lightweight aluminum alloy body allows single-person effortless deployment/retraction.
● Lightweight & Portable: Sturdy yet ultra-light for single-person movement and vehicle-mounted transportation, no heavy lifting required.
● Quiet Operation: Low noise, no family/working environment disturbance.
● Customizable: Adjustable length, steps, and installation (wall/floor) for different heights/spaces; aluminum alloy’s easy processability supports flexible customizations with short lead time.
● Weather Resistant: Natural oxide film on surface provides inherent protection against rain, snow, road salt (North American winter use), no frequent maintenance required
