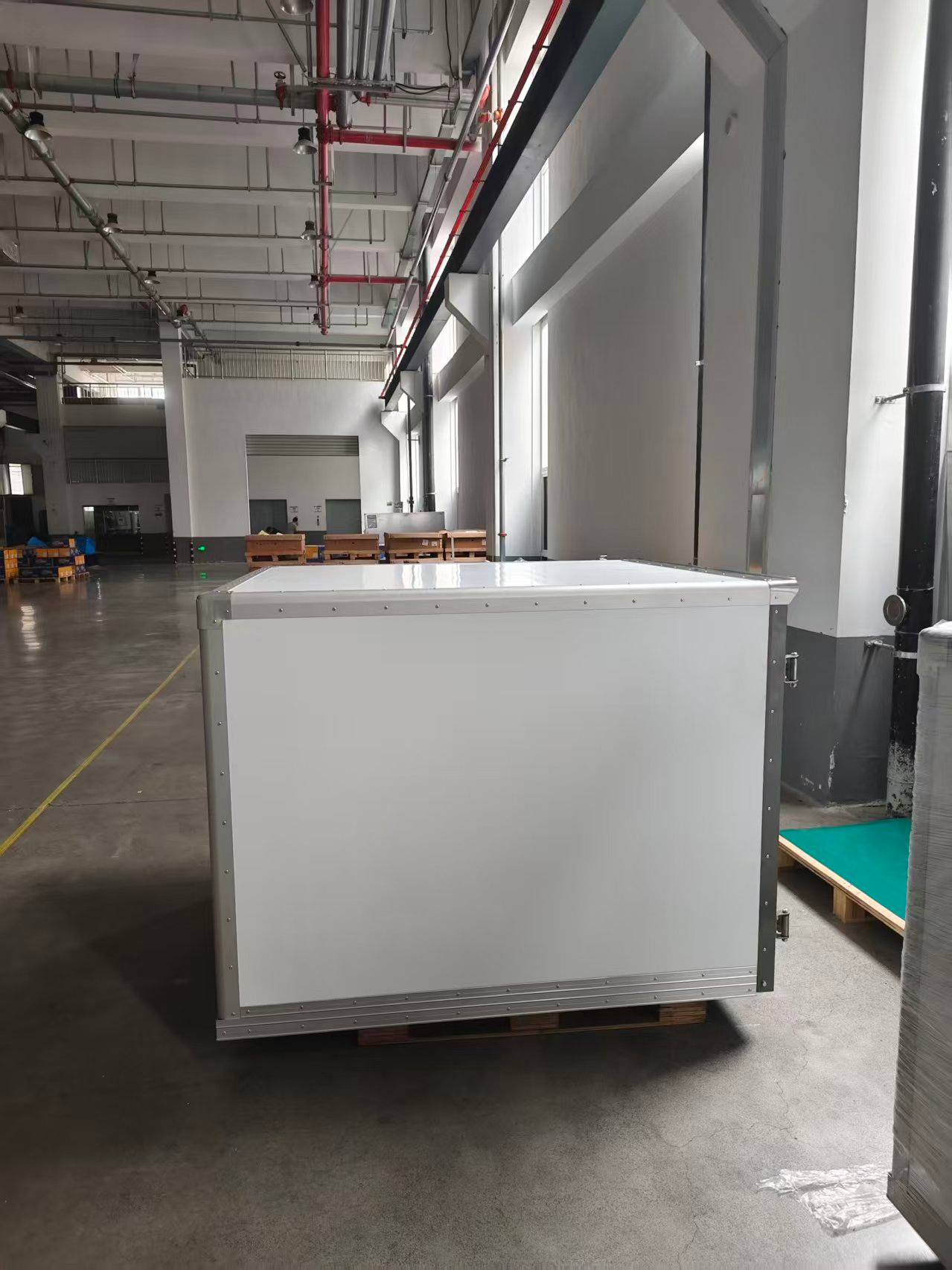

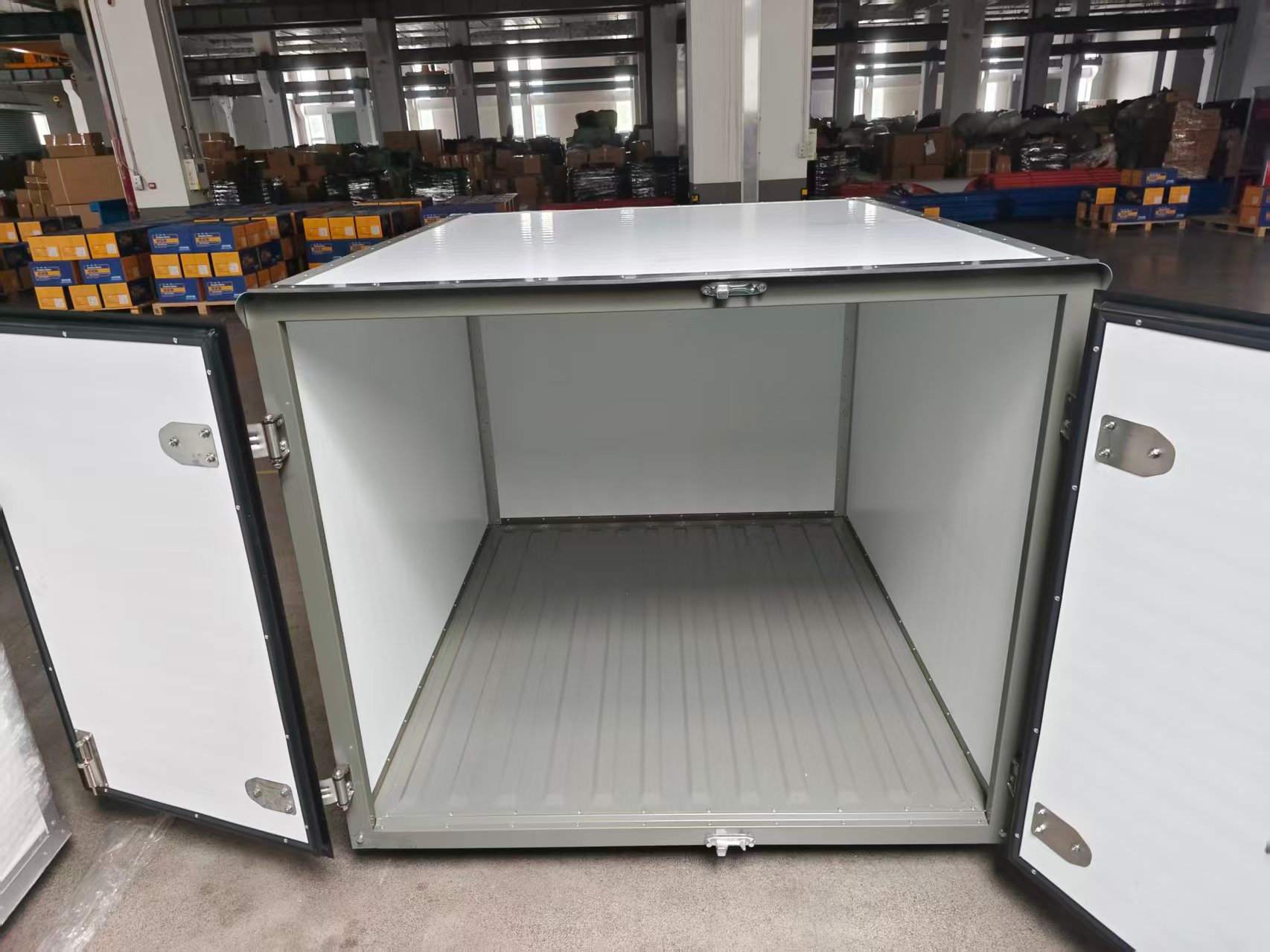

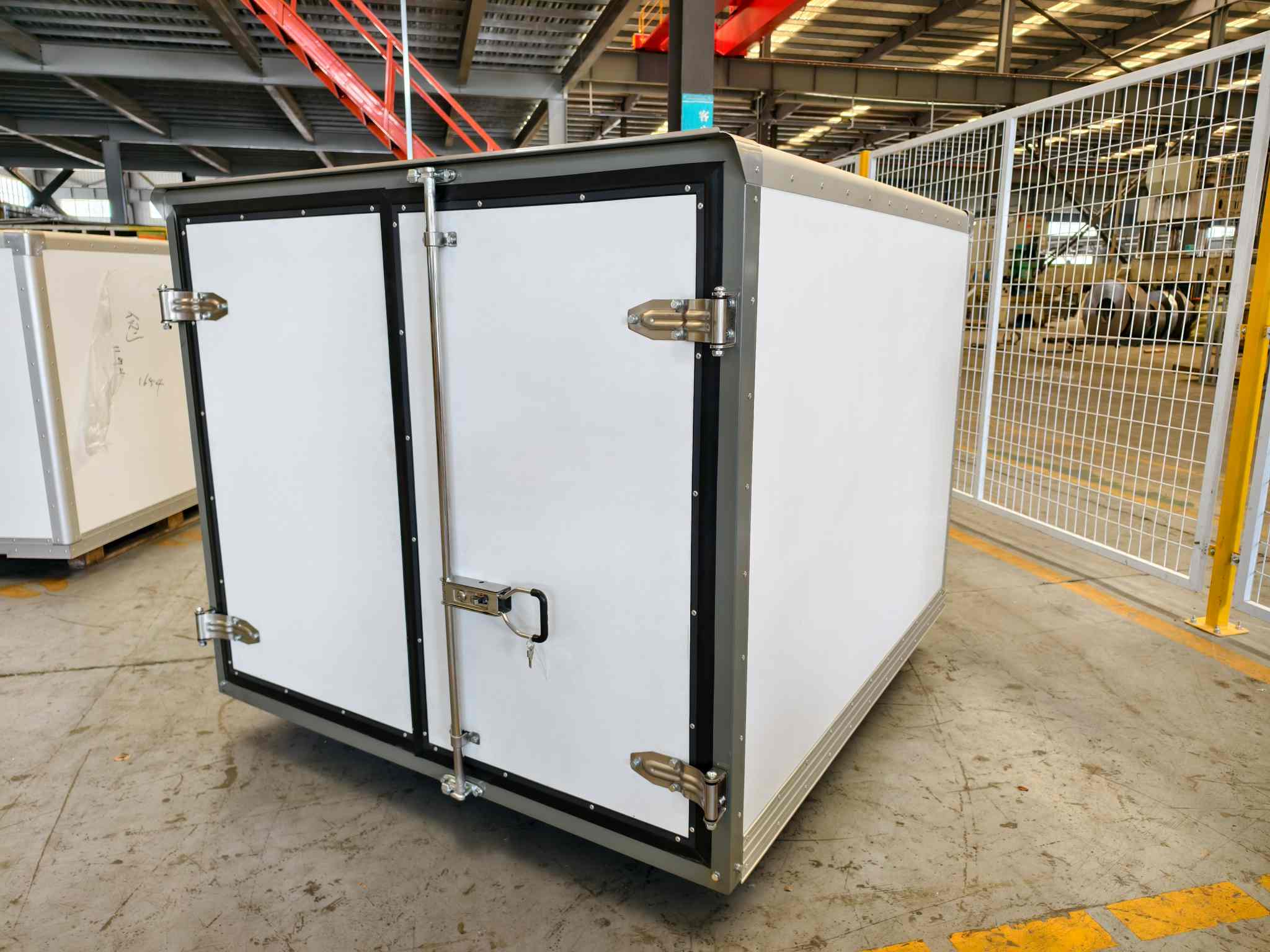

Nylon Honeycomb Dry Truck Body

Product Overview

This high-performance 25mm nylon honeycomb panel is a new-generation lightweight thermoplastic sandwich material independently developed and produced for electric tricycle cargo box refitting and mass OEM supporting. With a standard areal weight of 4.42kg per square meter and optional core density of 60kg/m³, 80kg/m³ and 100kg/m³, it can freely balance lightweight, rigidity and impact resistance according to customer performance requirements. The finished panel adopts a standardized customized size of 1670*1490*1250mm, which perfectly matches the mainstream cargo compartment size of electric tricycles on the market. It is the best replacement solution for traditional iron boxes, aluminum boxes and ordinary wooden boards, helping electric vehicle manufacturers achieve body weight reduction, energy saving and efficiency improvement.

Different from traditional rigid plate materials, nylon honeycomb panel adopts integrated hot-press molding process with regular honeycomb porous structure. It features uniform stress dispersion, strong structural stability, no deformation after long-term load, and excellent weather resistance. It can adapt to all-weather outdoor working conditions and is widely used in electric tricycle cargo bodies, enclosure panels, side baffles and rear door panels.

Core Product Specifications

• Panel Thickness: 25mm standard thickness

• Standard Areal Density: 4.42kg/㎡

• Optional Honeycomb Core Density: 60kg/m³ / 80kg/m³ / 100kg/m³ (customizable performance)

• Standard Finished Size: 1670*1490*1250mm (exclusive size for electric tricycle cargo box)

• Material: High-strength environmentally friendly nylon thermoplastic material

• Molding Process: One-piece integral hot pressing, no glue gap

• Applicable Scene: Special customized panel for electric tricycle cargo body

• Surface Feature: Smooth surface, waterproof, dustproof, easy to clean and paint

Unique Product Advantages

1. Multi-Density Optional, Customizable Performance

We provide three core density configurations to meet different usage needs. 60kg/m³ is ultra-light, suitable for standard light-load distribution vehicles to maximize weight reduction and power saving; 80kg/m³ balances weight and rigidity, the most cost-effective universal model for daily cargo tricycles; 100kg/m³ has higher compression resistance and impact resistance, suitable for heavy-load transportation and complex road conditions. Customers can choose freely according to load capacity, service life and cost budget.

2. Ultra-Light 4.42kg/㎡, Energy Saving & Power Saving

Compared with traditional metal and wooden cargo box panels, the 25mm nylon honeycomb panel greatly reduces the overall body weight with only 4.42kg per square meter. Lightweight body effectively reduces the driving load of electric tricycles, significantly improves battery endurance, reduces power consumption, and lowers daily operating costs for end users. It is fully in line with the lightweight and energy-saving development trend of new energy electric vehicles.

3. High Rigidity & Impact Resistance, No Permanent Deformation

The three-dimensional honeycomb structure forms a stable mechanical support system, which can evenly disperse external impact and pressure. The panel has excellent bending resistance and compression resistance, and will not bulge, deform or break after long-term carrying of goods and road vibration. Compared with ordinary flat plates, it has stronger fatigue resistance and longer service life, solving the common problems of easy dent and easy damage of traditional tricycle boxes.

4. Waterproof, Corrosion Resistant & Weather Durable

Made of integral nylon thermoplastic material, the panel has no water absorption, excellent waterproof and moisture-proof performance, and will not rot, rust or mildew in humid, rainy and high-temperature environments. It is resistant to acid and alkali corrosion, sun exposure and cold freezing, adapting to all-season outdoor operation. No need for frequent maintenance, greatly reducing after-sales repair and replacement costs for manufacturers.

5. Standard Size for Electric Tricycle Direct Assembly

The exclusive customized finished size 1670*1490*1250mm is specially designed for electric tricycle cargo body structure. The size matches the mainstream frame installation holes and assembly standards in the market. It supports direct cutting and rapid assembly without secondary complicated processing, greatly improving factory production efficiency and suitable for mass OEM supporting and batch replacement.

6. Environmentally Friendly & Easy Post-Processing

The nylon honeycomb material is non-toxic, odorless, recyclable, and meets international environmental protection standards. The smooth flat surface supports painting, pasting, drilling and cutting. It is convenient for manufacturers to carry out personalized color matching, logo printing and structural modification, improving the overall appearance and product added value of electric tricycles.

Application Scenarios

Specially used for electric tricycle standard cargo box body, logistics distribution tricycle carriage panel, agricultural transport tricycle enclosure, customized special vehicle compartment board, new energy lightweight vehicle body accessories and other supporting fields.

Customization & Service Support

1. Free selection of 60/80/100kg/m³ core density to match different load standards;

2. Support customized thickness, special size and surface color;

3. Standard factory prefabricated size, ready for mass delivery;

4. Strict quality inspection, flatness and compression test before shipment;

5. Long-term stable OEM supporting for electric vehicle manufacturers.
