Aluminum Honeycomb Dry Truck Body

Our Aluminum Honeycomb Dry Truck Body combines high strength with 100% recyclability, aligning with eco-friendly logistics trends for long-haul fleets. As a reliable supplier, Whole Chain Tech is ISO 9001 certified and delivers corrosion-resistant panels to customers worldwide.
    Rating: 5.0
    (Rating Count: 1)

    The Aluminum Honeycomb Dry Truck Body combines high strength with 100% recyclability, making it the top choice for long-haul cross-border fleets. The aluminum core and facings are bonded with aerospace-grade adhesive, ensuring long-term service and excellent corrosion resistance.

    Aluminum Honeycomb Dry Truck Body

    ✅ Ideal for: Large-scale cross-border logistics service providers, high-value goods specialized transportation enterprises, precision equipment manufacturers' supporting logistics teams, luxury goods transportation companies, especially suitable for cross-border, long-distance and high-standard transportation of high-value goods.

    Core Value Proposition

    ✅ High Strength & Lightweight: 3x stronger than steel, yet 1/3 the weight, improving transportation efficiency.
    ✅ Corrosion Resistance: Passed 5000-hour salt spray test, suitable for coastal and cross-border routes.
    ✅ 100% Recyclable: supports your ESG goals and meets stringent international environmental regulations

    Supplementary Technical Parameters

    Parameter Specification
    Core Material Aluminum Alloy Honeycomb
    Facing Material 1.0mm FRP Plate
    Standard Thickness 40mm / 50mm / 60mm (Custom available)
    Panel Weight (50mm) Approx. 10-12 kg/m²
    Compressive Strength ≥ 250 kPa
    Thermal Conductivity ≤ 0.05 W/(m·K)
    Operating Temperature -30°C to +80°C
    Fire Rating Class B (EN 13501-1)
    Standard Panel Size 1500mm x 3000mm (Fully customizable)

    Here are the popular size references

    Body of Light Duty Dimension

    Parameter Optional Dimension
    INT. Length 12/14/16/18/20 ft (3.66/4.27/4.88/5.49/6.10 m)
    EXT. Width 94-1/2 in (2400 mm)
    INT. Height
    82 in (2083 mm)

    Body of Heavy Duty Dimension

    Parameter Optional Dimension
    INT. Length 16/18/20/22/24/26 ft (4.88/5.49/6.10/6.71/7.32/7.92 m)
    EXT. Width 96 in (2438 mm)
    INT. Height
    94 in (2388 mm)

    Certification & Warranty

    ✅ ISO 9001:2015 Certified Manufacturing

    Our entire production and quality management system is internationally certified for consistency and reliability.

    ✅ In-House Testing & Validation

    Aluminum Honeycomb Dry Truck Body

    Our dedicated on-site materials laboratory equipped with professional-grade testing apparatus allows us to continuously monitor and validate every critical performance claim:
    Salt Spray Corrosion Resistance (verified per ASTM B117 standard procedures)
    Compressive & Tensile Strength

    ✅ Our Warranty Promise

    We stand behind our technology. Our panels are backed by a 5 Year Anti-Perforation Corrosion Warranty, ensuring your investment is protected.

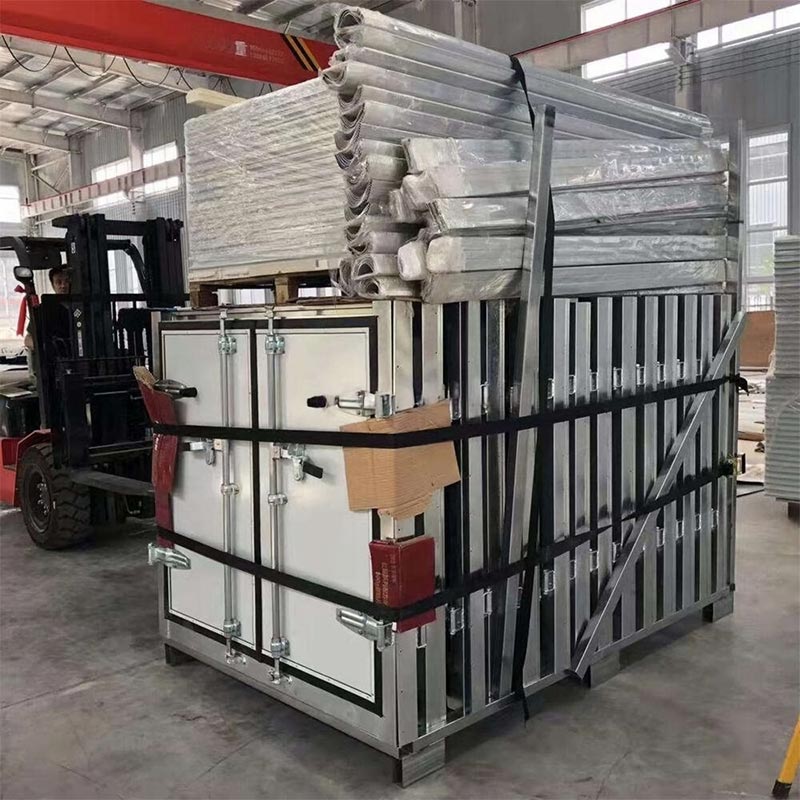

    Our packing ways

    Aluminum Honeycomb Dry Truck BodyAluminum Honeycomb Dry Truck Body

    Our packaging is engineered to protect your investment during long-haul ocean and overland transport, ensuring every component arrives in pristine, ready-to-install condition.

    ● Modular Component Packaging: All body panels, frames, and structural components are individually wrapped in protective anti-scratch film and secured on heavy-duty wooden pallets with reinforced steel strapping. This prevents surface damage and corrosion during transit.

    ● Secure Stacking & Bracing: Palletized components are stacked and braced within 20ft/40ft shipping containers using custom steel brackets and heavy-duty ratchet straps.

    ● Corrosion Protection: All metal parts receive a pre-shipment rust inhibitor treatment, and moisture-absorbing desiccants are placed inside sealed packaging to guard against humidity during ocean transport.

    ● Labeling & Documentation: Each package is clearly labeled with part numbers, barcodes, and handling instructions.


    FAQ

    Q1: What is an aluminum honeycomb dry truck body?

    A: It is a lightweight truck body whose core is made of aluminum honeycomb, sandwiched between durable facing panels. The aluminum core and facings are bonded with aerospace-grade adhesive, delivering high strength, excellent corrosion resistance, and 100% recyclability for long-haul logistics operations.


    Q2: How does it compare to traditional steel or standard aluminum bodies?

    A: The aluminum honeycomb structure is substantially lighter than steel at a fraction of the weight, which increases payload capacity and reduces fuel consumption. It also provides excellent structural rigidity and corrosion resistance, making it ideal for demanding cross-border and coastal routes.


    Q3: Is the body corrosion-resistant?

    A: Yes. The all-aluminum structure naturally resists corrosion, making it well suited for coastal environments and long-haul routes exposed to moisture and road salt. Our in-house testing continuously validates corrosion resistance and other key performance claims.


    Q4: How long will the body last?

    A: Our aluminum honeycomb bodies are built for long-term service with minimal anti-corrosion maintenance. All panels are backed by our limited warranty; please contact us for warranty details specific to your application.


    Q5: Can the body be customized?

    A: Yes. We offer fully customizable panel sizes, thickness (40mm / 50mm / 60mm), and body dimensions. Our engineering team can tailor the body to your truck model and operational needs.


    Q6: How does the aluminum honeycomb body differ from PU core or monolayer bodies?

    A: Compared to PU core bodies, the aluminum honeycomb structure offers higher rigidity and full recyclability with similar thermal insulation. Compared to monolayer aluminum bodies, it achieves the same strength at significantly lower weight, maximizing payload. Your choice depends on the cargo type, weight requirements, and budget—our team can help you select the best option


    Uncompromising strength for the most demanding loads. A leader in lightweight rigidity, Aluminum Honeycomb ensures maximum payload and longevity. Speak with our engineering team about your specific hauling challenges.
