Pickup Photovoltaic Detachable Box

Product introduction

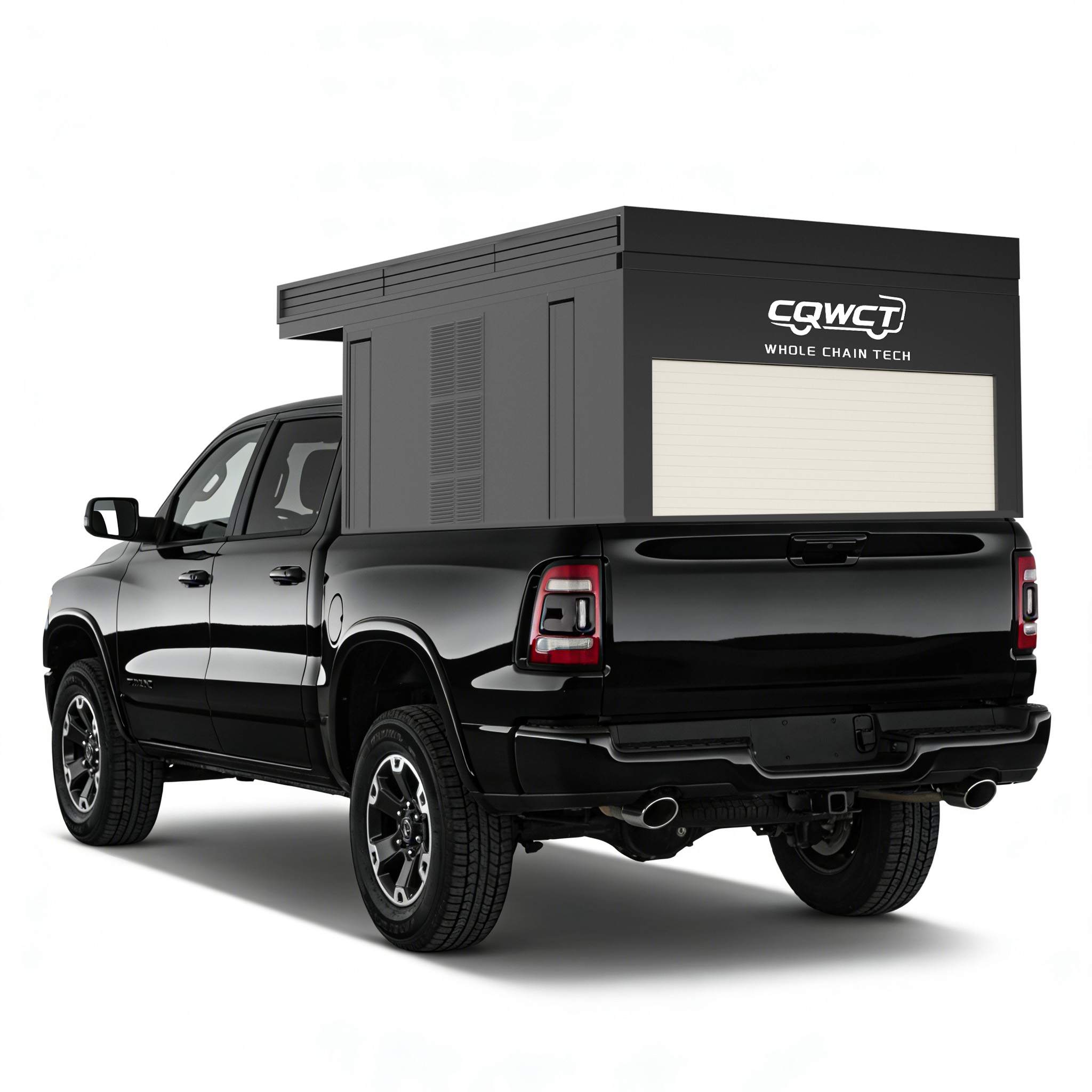

The Pickup Photovoltaic Detachable Body is a next-generation, vehicle-mounted autonomous drone deployment and power supply system, engineered specifically for dynamic industrial, public safety, and surveillance missions. Designed to integrate seamlessly with full-size pickup trucks, this all-in-one solution combines high-efficiency solar power, intelligent battery management, and a weatherproof docking station. Whether you are conducting long-range drone surveys, emergency response, or environmental monitoring, the Pickup Photovoltaic Detachable Box delivers reliable, on-the-go power and deployment capability wherever your mission takes you.

Core Features

1.Smart Electric Hydraulic Deployment System

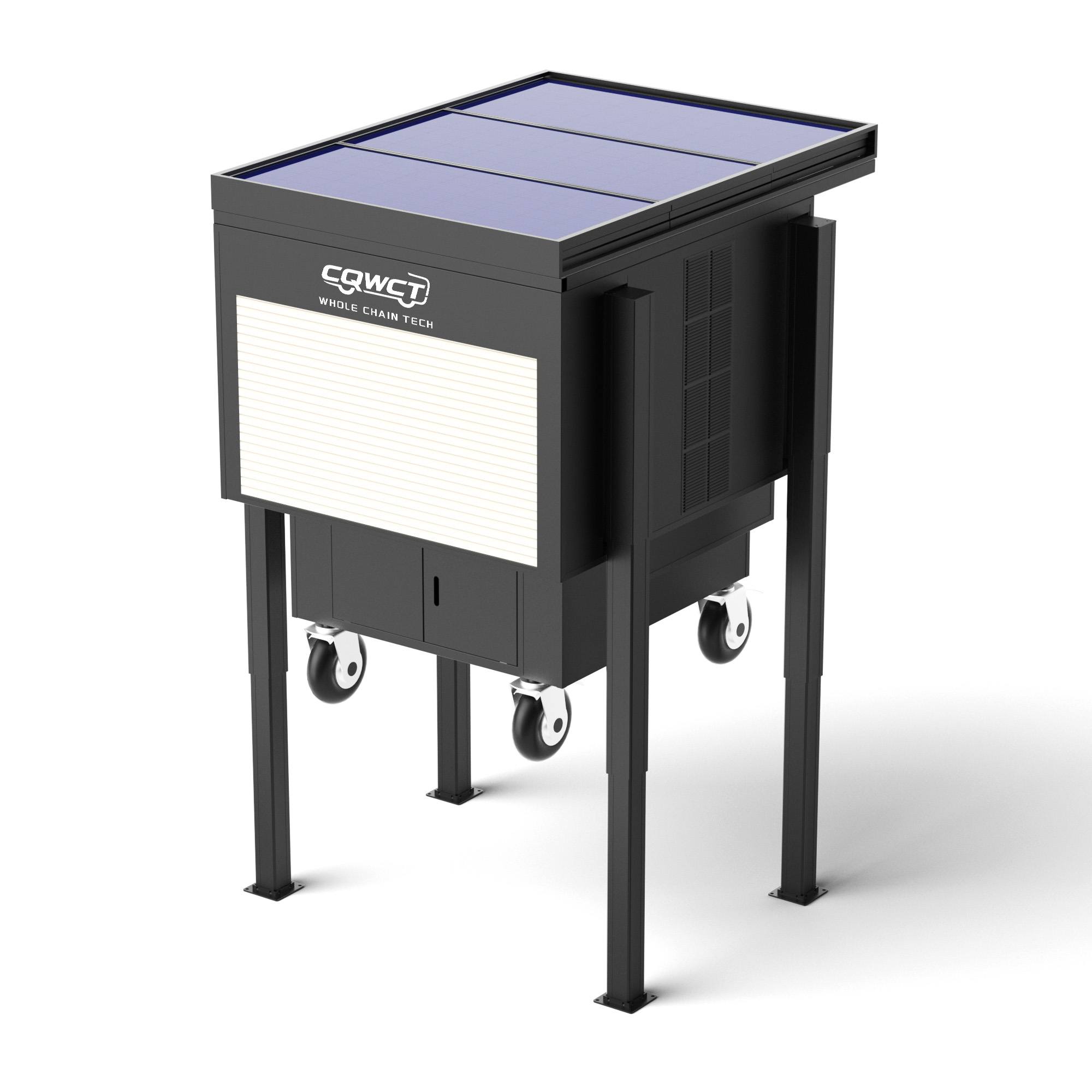

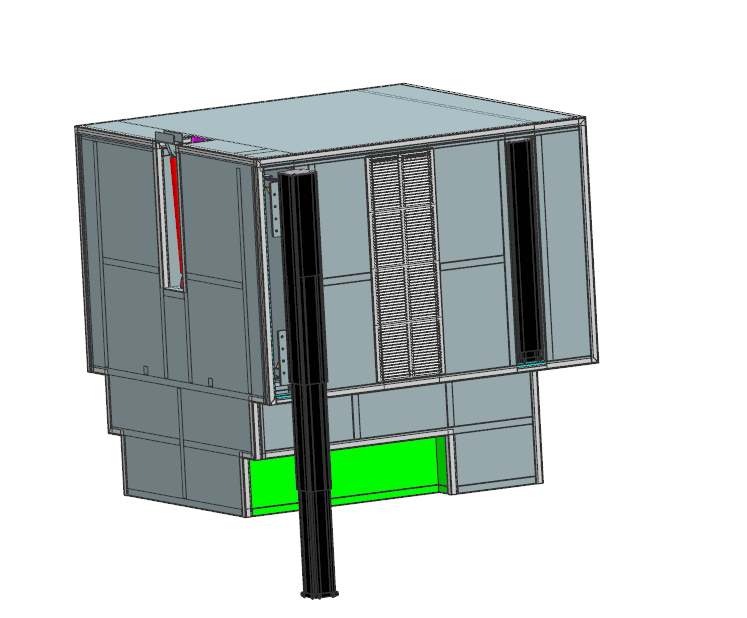

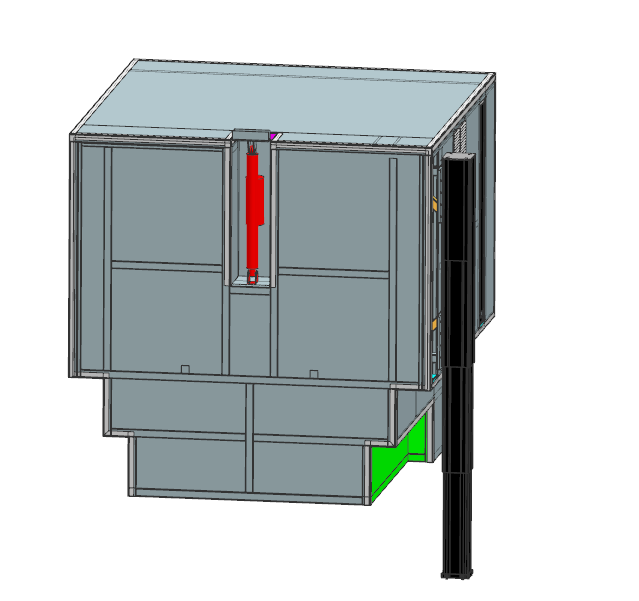

This advanced system adopts an intelligent electric hydraulic driving structure, realizing fully automatic operation without manual intervention. The lifting mechanism is controlled by an electric remote controller, supporting one-key start, stop and adjustment. It is equipped with 4 high-strength automatic leveling support legs, which replace the traditional manual hand-crank design. The system can quickly adjust height and keep the whole platform stable and balanced, greatly improving operation efficiency, safety and user experience.

2.Dual-Point Support Structure

The platform adopts a dual-point reinforced support structure to provide stronger stability and load-bearing performance for the solar panel array and drone landing pad. It effectively reduces shaking and deformation during operation, ensuring excellent structural rigidity and safety. Even under severe high-wind conditions (wind resistance up to 100 km/h), the system remains stable and reliable, meeting the requirements of outdoor all-terrain applications..

3.Full-Automatic Solar Panel Extension

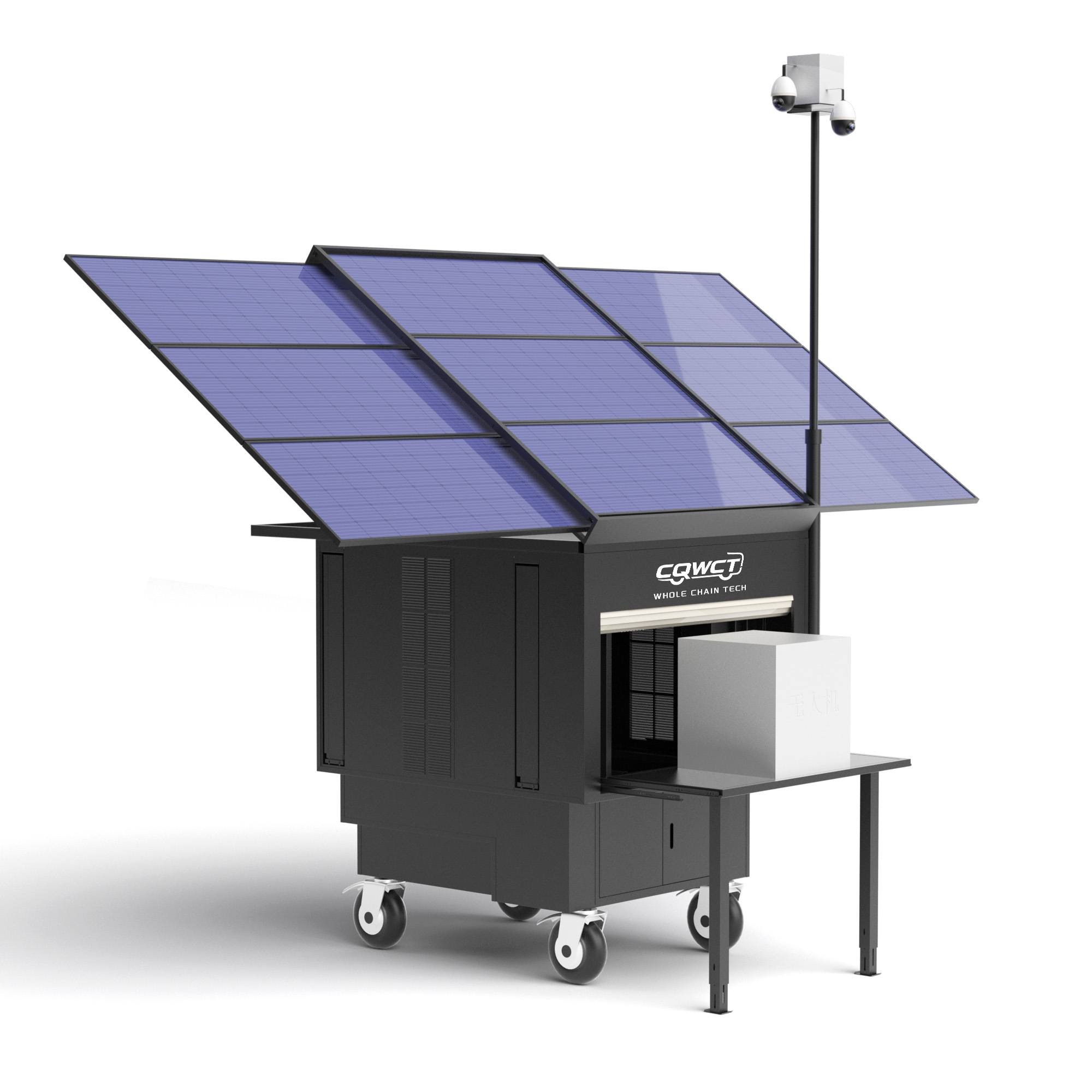

Equipped with an electrically controlled telescopic sliding mechanism, the solar panel array can extend and retract fully automatically. The smooth and stable action ensures high reliability in long-term use. The system supports a 9-panel high-power configuration (300W per panel), with a total power output of 2700W, achieving maximum solar energy absorption and conversion efficiency to provide stable and clean power supply.

4.Integrated Access Door

The platform is designed with an integrated widened battery access door, which has been upgraded from the original 80cm to ≥100cm in width. The larger opening space makes battery replacement, daily inspection, circuit maintenance and component upkeep more convenient and efficient. The humanized design significantly reduces maintenance difficulty and improves later operability.

5.Premium Anti-Corrosion Coating

The whole structure adopts a two-layer advanced anti-corrosion process: electrophoresis primer + top-grade spray painting, which provides double protection against rust, acid rain, salt fog and moisture. The coating has strong adhesion and high weather resistance, ensuring a 10-year anti-corrosion service life. It is suitable for long-term all-weather outdoor use in complex environments such as high humidity, salt fog and severe cold.

Technical Specifications

Category	Parameter	Details
Overall Dimensions	1830 x 1800 x 1801 (mm)	Standard compact footprint
Total Weight	800kg (1716 lbs)	Heavy-duty build
Solar Power System	Array Capacity	2700W (9 panels x 300W each)
	Panel Dimensions	1480mm x 670mm
Battery Storage	Standard	24V/200Ah
	Max Capacity	Upgradable to 400Ah
Control System	Controller Rating	60A high-efficiency controller
	Deployment Time	Rapid setup in 20 minutes
Environmental	Wind Resistance	100 km/h
	Protection Level	Weatherproof & Dustproof
Material & Finish	Surface Treatment	Electrophoresis + Spray Painting

Product Application

Ideal for:

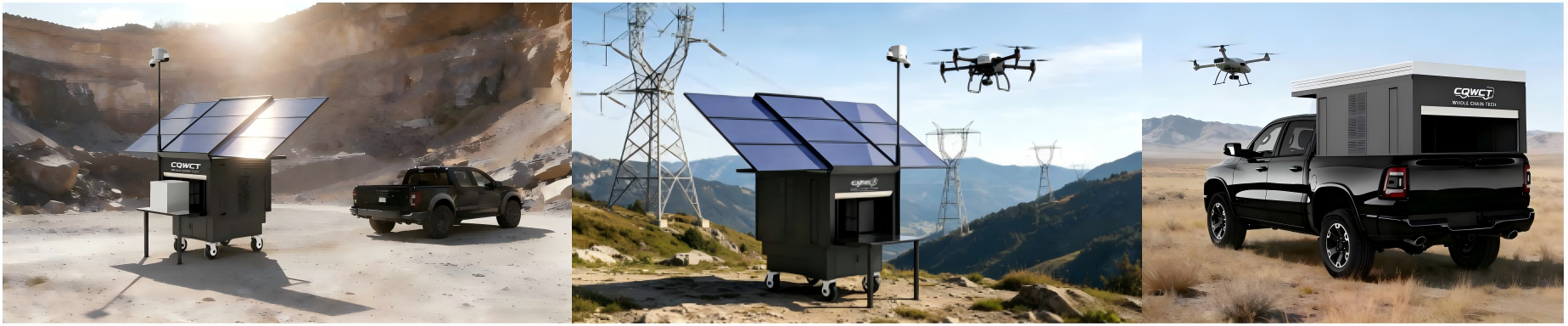

·Public Security & Emergency Rescue: On-site command and drone deployment.

·Power & Utility Services: High-altitude line inspection and maintenance.

·Military & Rescue Missions: Mobile command centers in remote areas.

·Environmental Monitoring: Forest fire prevention and agricultural surveying.

Why This Is Our Flagship Product？

The Pickup Photovoltaic Detachable Box is the star product designed for our trailer series.It integrates advanced technologies including automatic hydraulic leveling, intelligent solar tracking, high-power energy storage, and rugged anti-corrosion structure.

Built for the North American market, it meets strict industrial requirements for durability, safety, and reliability. With strong compatibility, easy operation, and long service life, it has become the preferred mobile energy & drone deployment solution for U.S. engineering, emergency, and military customers.
