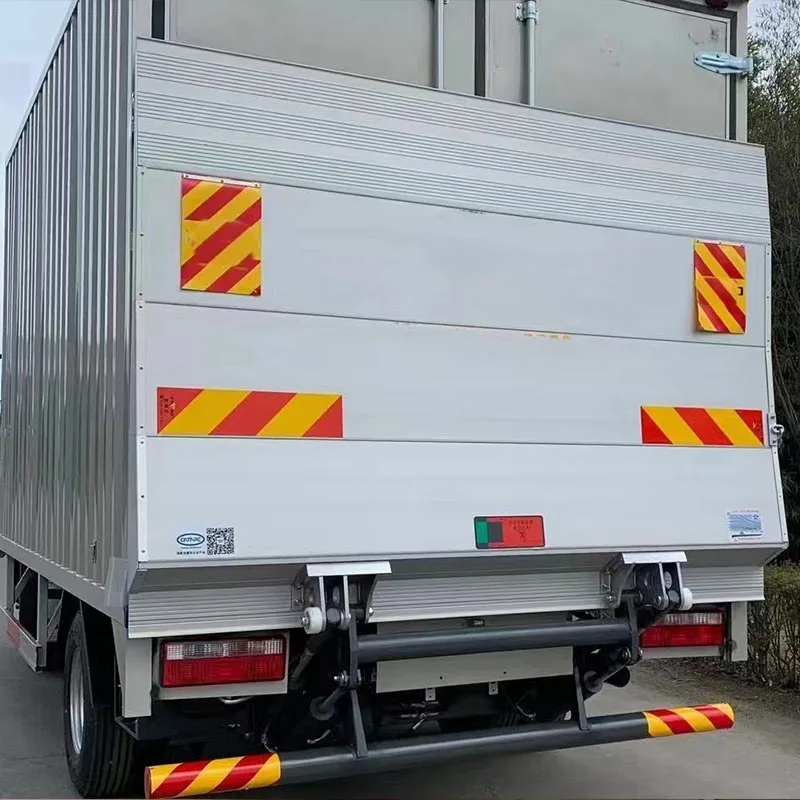

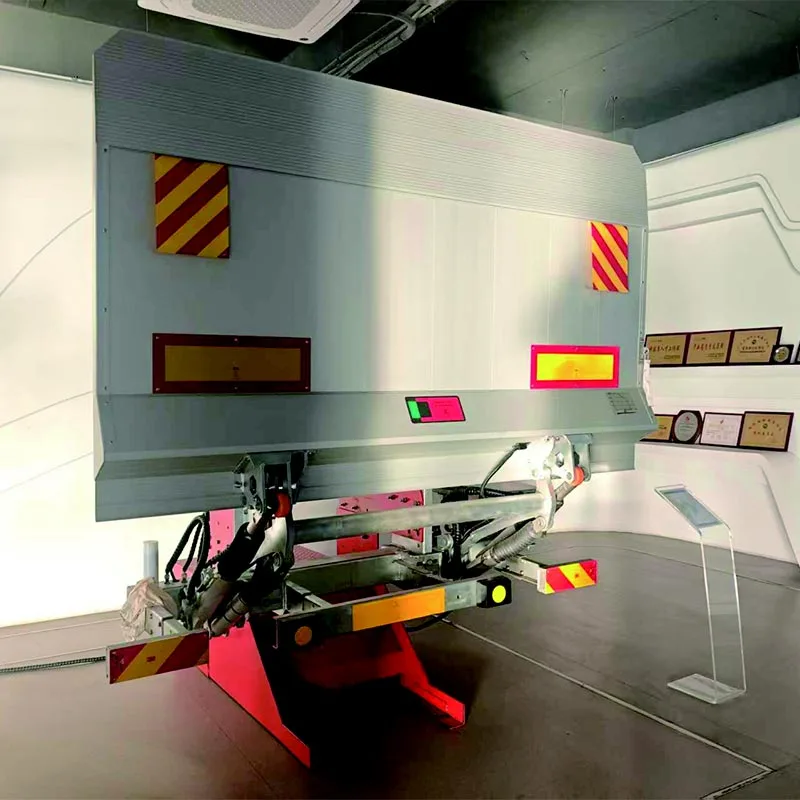

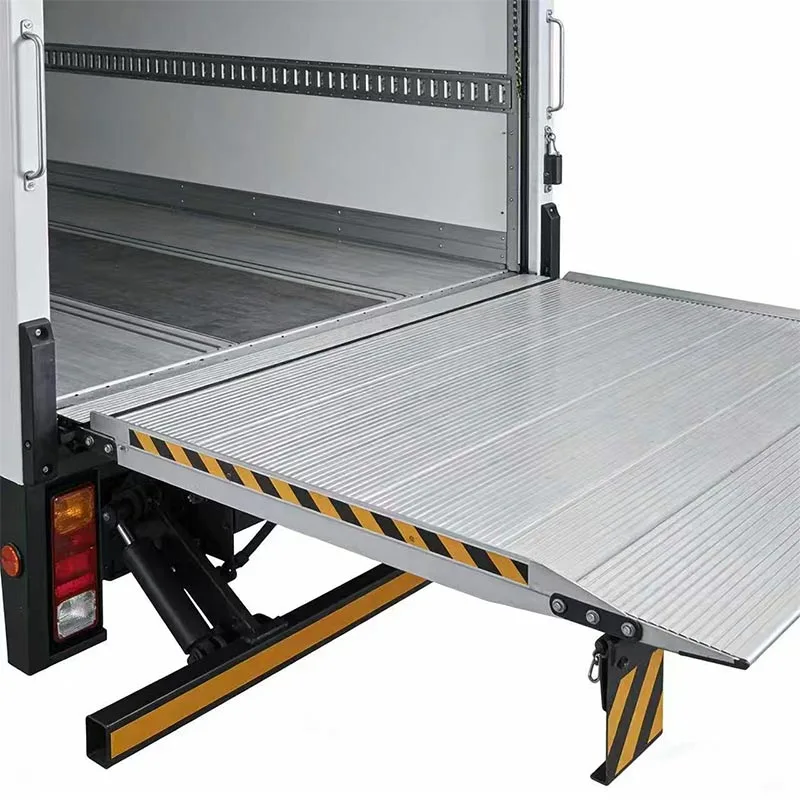

Cantilever Liftgate

This is currently the most widely applied type of hydraulic tail lift.
Our cantilever liftgate features a more complex structure, high load capacity, and an adjustable platform angle.
Lifting capacity ranges from 1500 kg to 2000 kg.
Platform materials include steel or aluminum, etc.
The entire equipment is designed to be resistant to low temperatures and corrosion.
The platform is equipped with foot switches and safety lights.
All steel structural components undergo hot-dip galvanization treatment.
The hydraulic cylinders are fitted with explosion-proof valves to prevent accidental pipeline rupture and subsequent platform drop.

Five composition

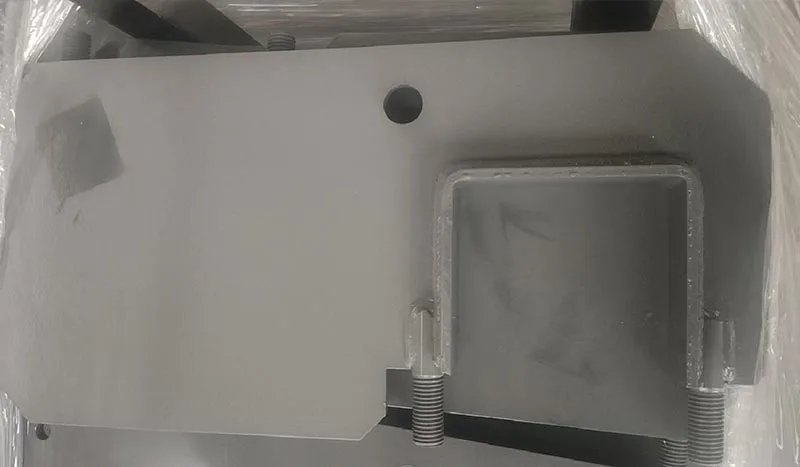

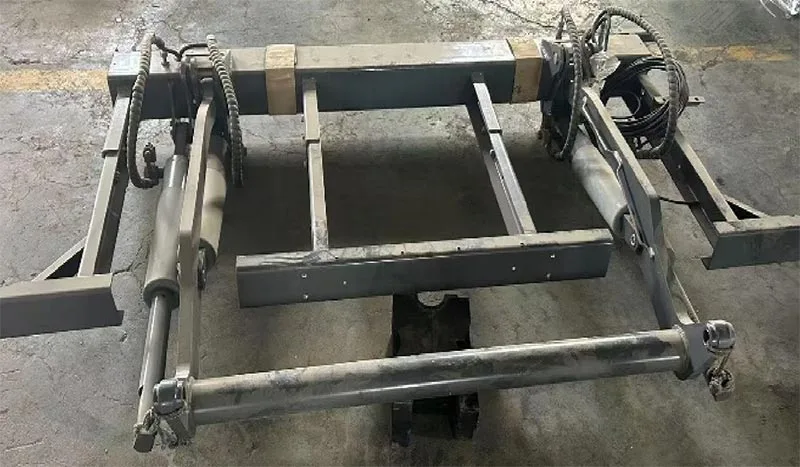

Frame Assembly：Unbreakable Backbone
Reinforced structure and precision hydraulics eliminate bending and jamming. The 3-section bumper absorbs impacts, protecting your vehicle and cargo in the toughest conditions.

Platform Assembly：Safe, Lightweight Operation
Non-slip aluminum platform reduces vehicle weight (saves fuel) while preventing cargo shifts. Hands-free foot switch and warning lights keep operators safe, even in low light.

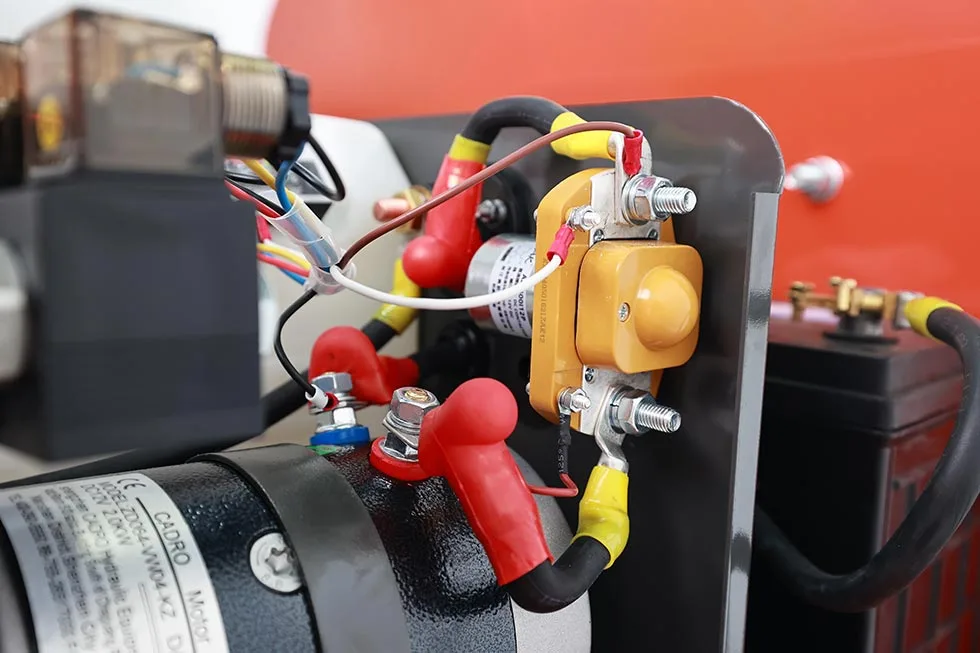

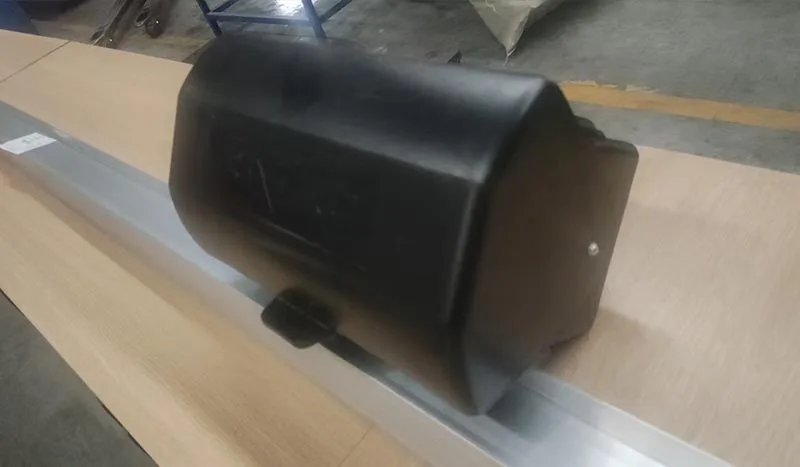

Power Unit：Silent, Reliable Power
High-torque DC motor and precision gear pump deliver smooth, energy-efficient lifting. Leak-proof manifold valves ensure zero pressure loss for consistent performance.

Electrical Control：Total Operational Control
Weatherproof IP65 control box + wireless remote. Operate safely from a distance, with audible buzzers and intuitive buttons

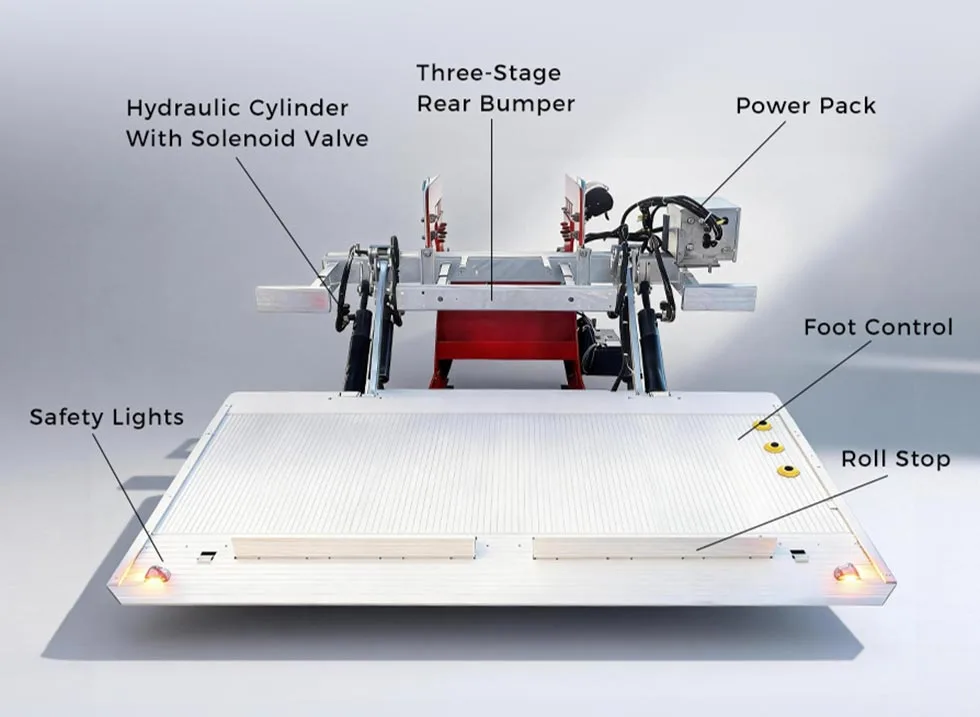

Cantilever liftgate structure
Column tail lifts are crafted with premium components for reliability and excellence performance. Cadro tail lifts feature stainless steel power pack, IP67-sealed foot control, embossed roll stop, safety lights, Rear Underrun Protection Device (RUPD), and hydraulic cylinder with solenoid valve for durability and efficiency.

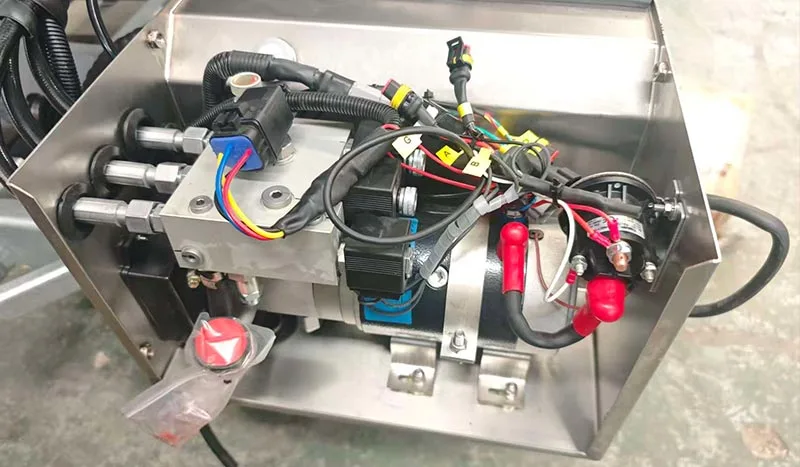

Integrated Hydraulic Power Unit：Precision-engineered for consistent pressure and leak-free operation

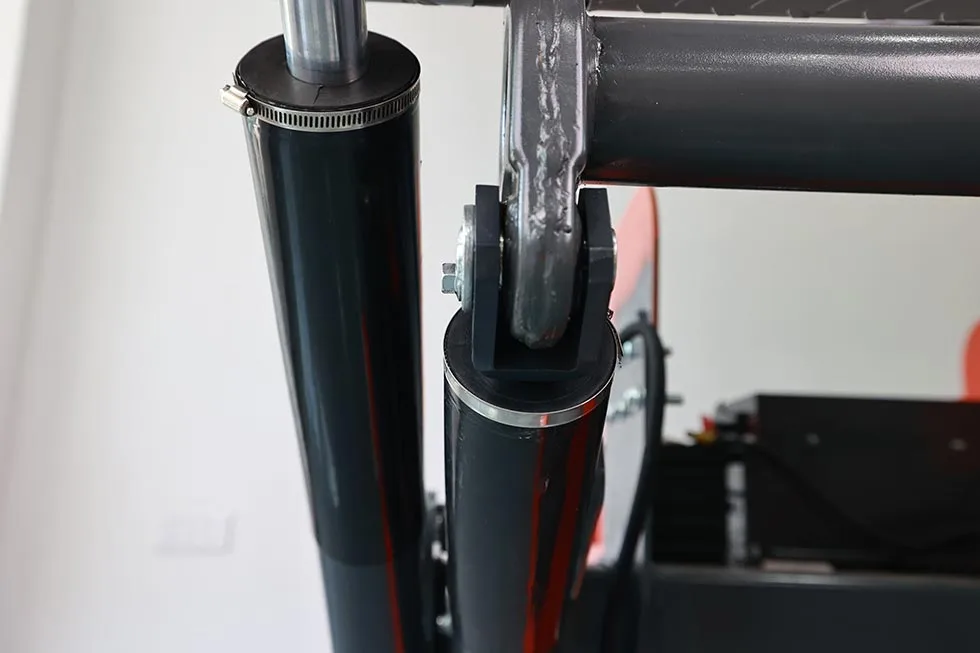

Heavy-Duty Lifting Cylinder：multi-layered seals ensure silent, wobble-free movement under heavy loads.

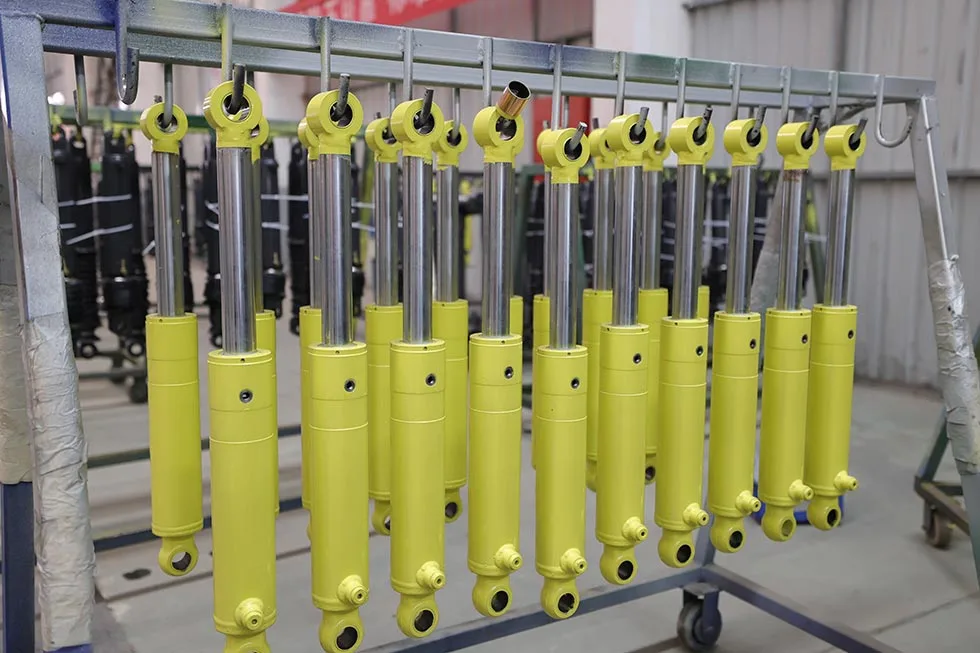

Production-Grade Hydraulic Cylinders：corrosion-resistant coatings for long-lasting performance.

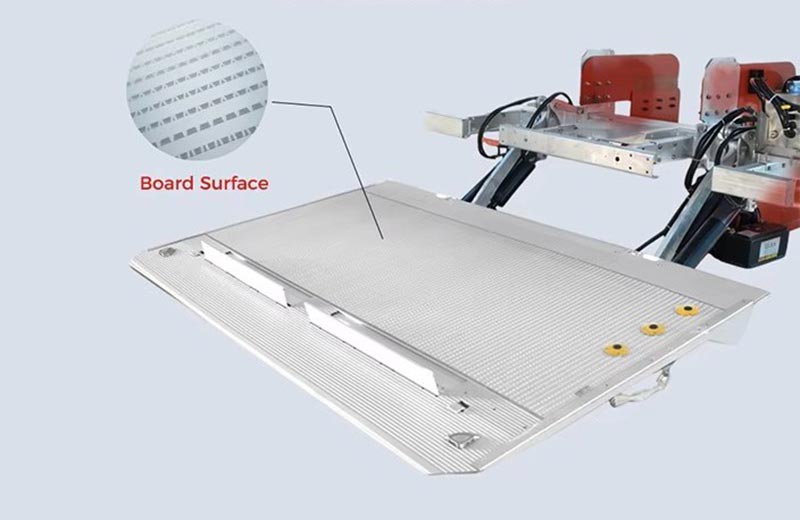

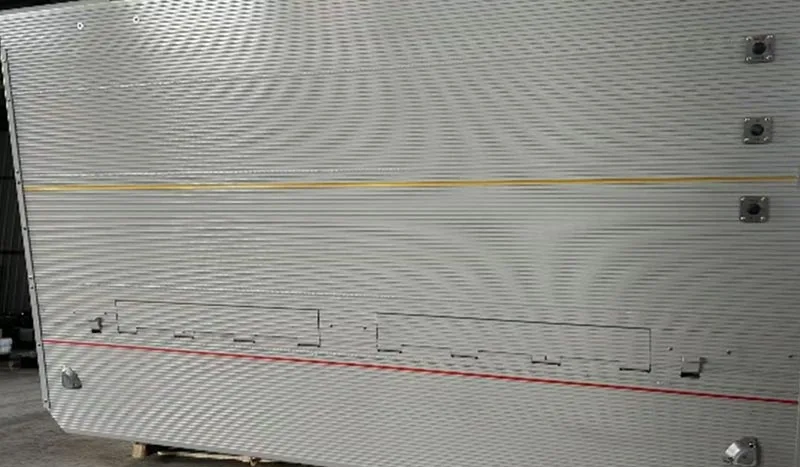

Anti-Slip Platform：Lightweight, corrosion-resistant material with a textured anti-slip surface to prevent cargo shifting

Cantilever Liftgate Optional Upgrades & Add-Ons

🔄 Control & Operation Options

● Foot switch on platform – Hands-free operation for safe, one-person loading/unloading
● Wireless remote control – Operate from up to 30m away, ideal for solo work or tight spaces
● Wired hand controller – Reliable, weather-resistant control for consistent performance
● Dual control mode (wireless + wired) – Redundancy for critical operations, no downtime if one system fails

🛡️ Safety & Visibility Enhancements

● Anti-slip platform coating – Extra grip in wet, icy, or oily conditions to prevent slips and falls
● LED safety warning lights (red/amber) – High-visibility alerts for nearby personnel and vehicles
● Audible safety buzzer – Audible alerts during operation to warn of movement and reduce accidents
● Emergency stop button (platform-mounted) – Instantly halt movement in case of hazard
● Safety interlock system – Prevents accidental operation when the vehicle is in motion

🛠️ Durability & Weather Protection

● Stainless steel hardware upgrade – Corrosion-resistant fasteners for coastal or salt-exposed environments
● Powder coat finish (custom colors) – Brand-matching or high-visibility color options for fleet identification
● Heavy-duty hydraulic oil (low-temp grade) – Reliable operation in -20°C to +80°C climates
● Additional hydraulic filter – Extends component life by reducing contamination in harsh work environments

📦 Cargo Handling & Convenience

● Side rails / edge guards – Prevents cargo from sliding off the platform during lifting
● Tie-down points (D-rings) – Secure cargo with straps or chains for stability
● Fold-down handrails – Enhances operator safety when standing on the platform
● Integrated loading ramp extension – Smooth transition from ground to platform for wheeled cargo
● Weight capacity upgrade – Customized load ratings for heavier cargo needs (beyond standard capacity)

🚚 Vehicle Integration

● Custom mounting brackets – Tailored fit for specific truck/trailer models
● Low-profile design modification – Preserves ground clearance for off-road or low-clearance applications
● Electrical harness upgrade (heavy-duty) – For high-voltage or extended wiring needs
● Anti-theft lock system – Secures control components to prevent unauthorized use

Product Advantages

Lightweight & Durable Construction
Superior Corrosion Resistance
Enhanced Anti-Slip Surface
Optimized Space Efficiency
Smoothly and Steady Movement
Easy & Low Maintenance

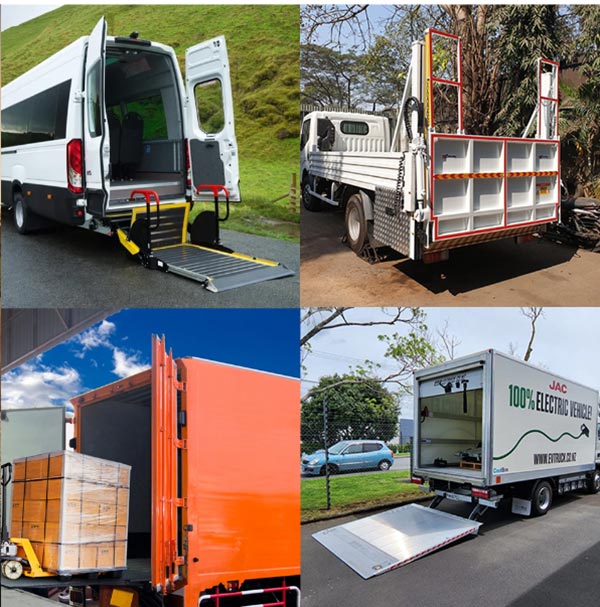

Customer Case

Our cantilever liftgates are trusted by logistics fleets, delivery services, and transport companies worldwide. From compact vans to heavy-duty trucks, our solutions adapt seamlessly to diverse cargo handling needs, streamlining operations and enhancing safety for every customer.
