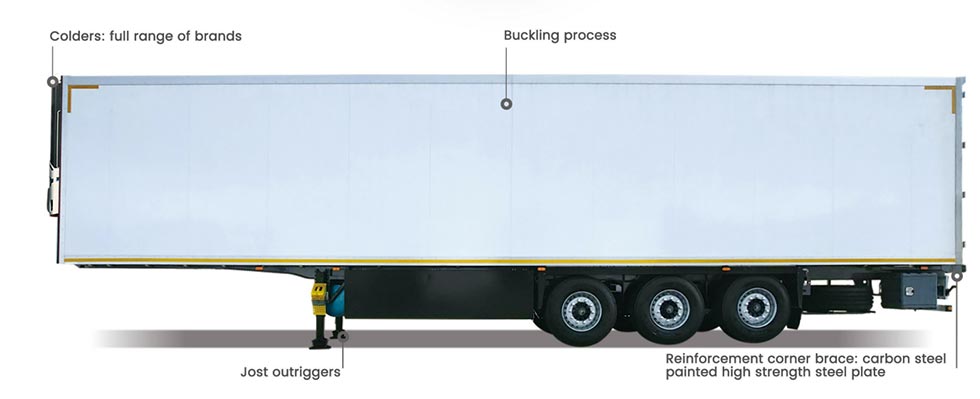

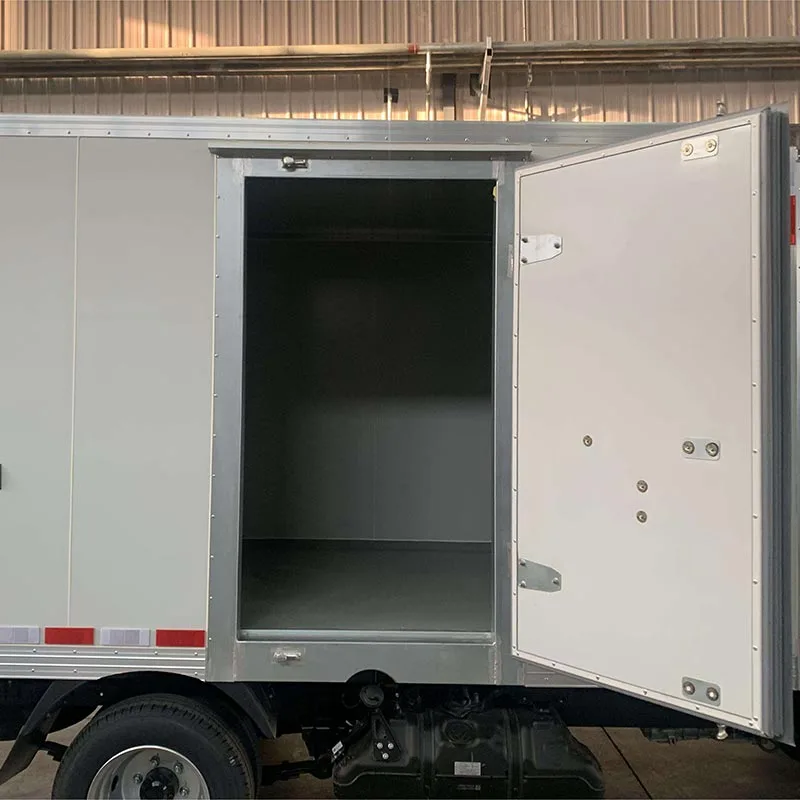

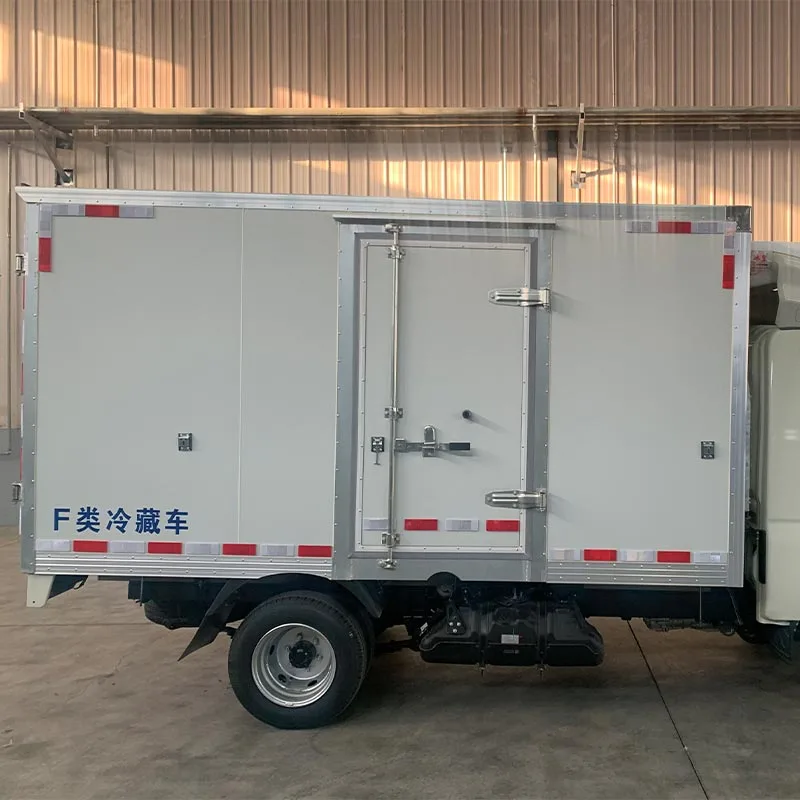

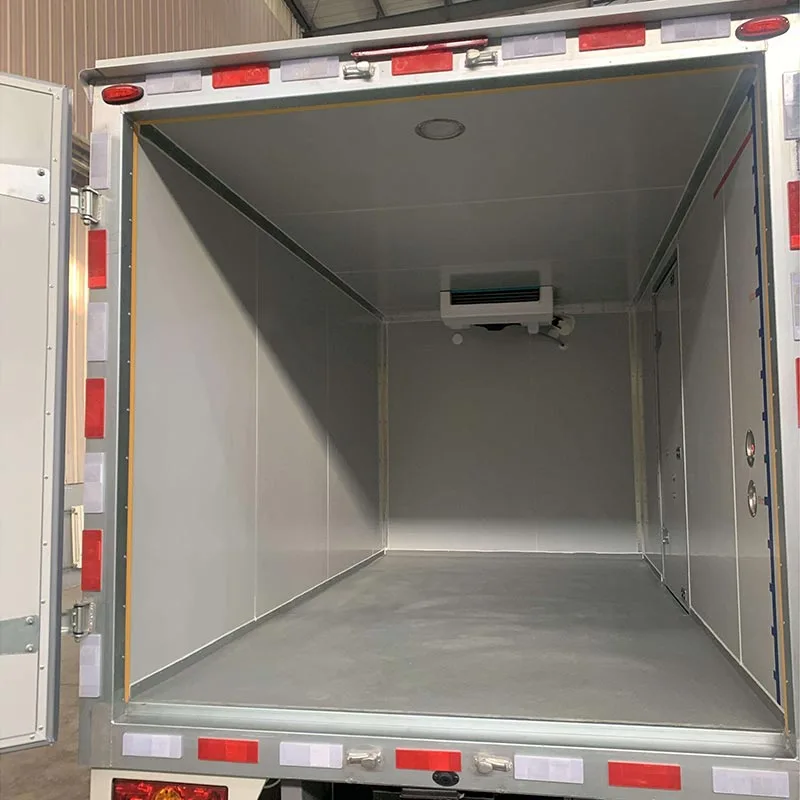

FRP Skin Lite Refrigerated Truck Body

FRP Skin Lite Refrigerated Truck Body offers a cost-effective solution for regional cold chain logistics, with a poured foam core providing a thermal conductivity of 0.023 W/m·K. These panels are easy to repair — foam can be re-injected on-site to fix damage, minimizing downtime for fleets.

Product Parameter

Product advantages

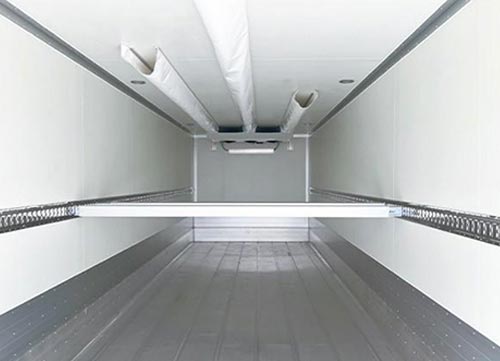

Installing a three-stage air guide cloth on the top plate effectively directs the cold air to the rear end, ensuring good circulation of the refrigeration unit.

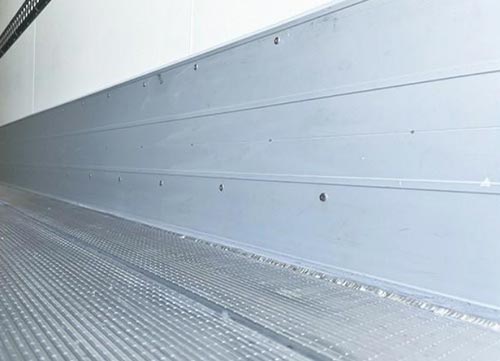

Install a 300mm aluminum profile anti-collision plate on the side panel, which is impact resistant.

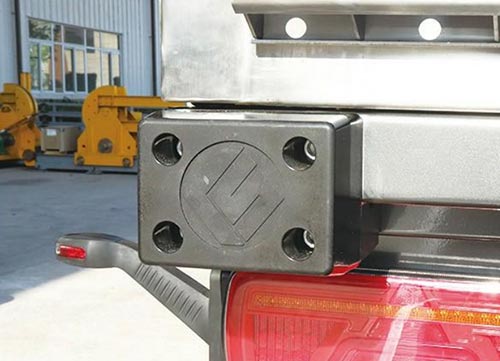

Weather-resistant rubber anti-collision structure, providing instant force relief and better protection for the cabin body.

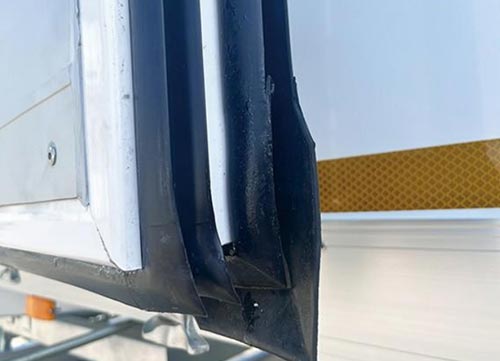

EPDM rear frame with internal "C"-shaped structure for good sealing, durability, and anti-aging.

1、High insulation(closed cell foam)

Adopting advanced closed foaming technology, the entire process is fully automated, with an evenly distributed insulation layer — no cavities, no bubbles — ensuring the flatness and insulation of the entire board. This addresses the process defects of uneven injection and severe gas entrapment in traditional closed foam.

2、High intensity

T6-grade high-strength aluminum flooring, welded by 8 welding machines running simultaneously, achieves full welding of the entire floor in one molding process, and then the bottom plate is foamed as a whole. It delivers high strength, good sealing, and prevents water leakage.

Unique structural design, the overall structure of the vehicle is stronger and does not deform.

3、Lightweighting

By using new materials, new processes, and new structural designs, we achieve lightweight construction with a balance between strength and lightness — 15% to 20% lighter than traditional bonding processes.

4、Environmentally friendly Internationally recognized 'green' foaming agent

Polymer metal sheet — weather resistance, UV protection, and corrosion resistance.

Inner thermoplastic panel — meets US food-grade standards.

Hardware — all made of 304 stainless steel food-grade material.

Environmentally friendly workshop — dust-free and odorless, with compliant emissions.

FAQ

Q1: What is the core insulation material of the FRP Skin Lite Refrigerated Truck Body?

A: The core is made of poured polyurethane (PU) foam with a thermal conductivity of 0.023 W/m·K, providing efficient insulation for regional cold chain logistics. The closed-cell structure is evenly distributed with no cavities or bubbles.

Q2: What skin materials can I choose from?

A: We offer three skin options: Standard — precoated color steel plate; Recommended — precoated aluminum plate (3003/5052 alloy) for lighter weight and corrosion resistance; Premium — food-grade thermoplastic sheet for the highest hygiene standards. Inner and outer skins can be combined based on your cargo needs.

Q3: What if the panel gets damaged during use?

A: One of our key advantages is repairability: the foam can be re-injected on-site to fix damage, which minimizes downtime for your fleet. You don't need to replace the whole panel.

Q4: Can the truck body be customized for my vehicle?

A: Yes. We support one-stop customization for light, medium, and heavy-duty refrigerated trucks — including dimensions, door layout, skin material, colors, and branding — to ensure a perfect fit for your chassis and business needs.

Q5: What temperature range can the body maintain?

A: The body provides high-efficiency insulation that minimizes temperature fluctuation; the actual temperature is set by your refrigeration unit. Whether you carry fresh, chilled, or frozen cargo, the poured foam core keeps the interior stable while reducing energy consumption.

Trust seamless insulation for temperature-critical hauls. Our poured foam technology guarantees no cold spots, ensuring product quality from origin to destination. Let's calculate your potential savings on energy and maintenance.
