WholeChainTech, a leading provider of advanced composite solutions for commercial truck bodies, has officially released a technical comparison of its two flagship core materials: honeycomb panel and PET foam core. As the logistics and transportation industry accelerates toward lightweighting, durability, and sustainability, understanding the core differences between these two materials is critical for fleet operators, body builders, and procurement teams. This press release breaks down their structural design, performance metrics, processing advantages, and ideal truck body applications to help stakeholders make data-driven decisions.

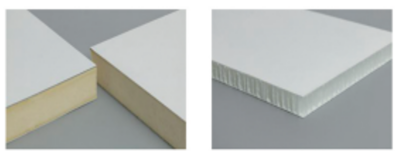

1. Honeycomb Panel Core
WholeChainTech’s honeycomb panel is a hexagonal-cell sandwich composite, typically constructed with PP (polypropylene) or recycled PET honeycomb core bonded to fiberglass-reinforced thermoplastic skins. The open, interconnected hexagonal structure mimics natural honeycombs, delivering exceptional strength-to-weight ratio by distributing loads evenly across the panel. This design is optimized for flat, large-format truck body panels requiring maximum rigidity with minimal weight.
2. PET Foam Core Material
The PET foam core is a closed-cell thermoplastic foam made from 100% recycled polyethylene terephthalate (PET) resin, processed via supercritical CO₂ foaming technology. It features a uniform, independent closed-cell structure with tiny air pockets, offering superior flexibility, impact resistance, and moisture barrier properties. WholeChainTech’s PET core is available in densities of 60kg/m³, 80kg/m³, and 100kg/m³, catering to medium-to-heavy load truck body requirements.
1. Strength & Rigidity
Honeycomb Panel: Excels in compressive strength, flatness stability, and bending resistance. The hexagonal cell structure provides exceptional rigidity for large truck body walls and floors, minimizing warping and maintaining structural integrity under heavy static loads. Ideal for dry van and box truck bodies requiring consistent panel flatness.
PET Foam Core: Delivers superior impact resistance and shear strength. The closed-cell foam structure absorbs shocks and vibrations effectively, making it ideal for truck bodies transporting fragile goods, livestock, or equipment subject to dynamic loads. While slightly less rigid than honeycomb at equivalent densities, PET core offers better toughness and resistance to denting.
2. Weight & Density
Honeycomb Panel: Ultra-lightweight, with typical densities of 30–80kg/m³. WholeChainTech’s standard honeycomb panel for truck bodies weighs just 4.4kg/㎡ (25mm thickness), reducing a 4.2-meter truck body weight by 300–400kg compared to steel panels, increasing payload capacity by 15–20%.
PET Foam Core: Slightly denser (60–100kg/m³) but still significantly lighter than traditional materials. A 4.2-meter truck body using PET foam core weighs approximately 340kg, offering a 260kg+ weight reduction vs. conventional panels, balancing weight savings with enhanced durability.
3. Environmental & Chemical Resistance
Honeycomb Panel: Waterproof and chemical-resistant, with water absorption <0.4%. However, its open-cell structure requires proper edge sealing to prevent moisture intrusion in high-humidity environments. PP honeycomb offers excellent corrosion resistance, suitable for general freight applications.
PET Foam Core: 100% closed-cell structure with water absorption <1%, providing superior waterproofing and moisture resistance. It resists acids, alkalis, oils, and road salts, making it ideal for agricultural, refrigerated, and marine-facing truck bodies. PET is 100% recyclable, aligning with global sustainability mandates.
4. Thermal & Fire Performance
Honeycomb Panel: Good thermal insulation due to air-filled cells, but limited fire resistance without flame-retardant treatment. Operating temperature range: -40°C to +80°C.
PET Foam Core: Excellent thermal stability, withstanding processing temperatures up to 150°C and long-term use at 100°C. Meets FST (Fire, Smoke, Toxicity) standards for transportation, with low smoke emission and self-extinguishing properties when treated with flame retardants.
1. Manufacturing & Customization
Honeycomb Panel: Complex manufacturing involving precision cutting and bonding, limiting design flexibility. Best suited for standard, flat panels with uniform size and shape. Custom shaping or curved parts require additional processing and higher cost.
PET Foam Core: Easy to cut, mill, drill, and thermoform. Supports curved surfaces, special notches, and customized structural designs. More adaptable to complex truck body layouts and reduces production lead time for customized orders.
2. Installation & Maintenance
Honeycomb Panel: Requires precise edge sealing to maintain performance. Sensitive to impact at edges and corners. Once damaged, localized repair is relatively difficult.
PET Foam Core: High toughness reduces edge damage during installation. Closed-cell structure eliminates moisture-related maintenance. Simple to repair with basic patching materials, lowering long-term maintenance cost.
Honeycomb Panel Recommended For:
• Dry van trucks, box trucks, and enclosed logistics bodies
• Large flat wall and roof panels requiring high flatness
• Weight-sensitive electric truck bodies to maximize range
• General freight transport with stable, non-fragile cargo
PET Foam Core Recommended For:
• Livestock transport trucks, horticulture and potted plant vehicles
• Construction and engineering truck bodies under frequent vibration
• High-humidity, coastal, or agricultural working environments
• Refrigerated truck body insulation panels
• Custom-shaped or curved truck body components
Conclusion
Honeycomb panel and PET foam core from WholeChainTech represent two high-performance lightweight solutions for modern truck body manufacturing. Honeycomb panel leads in ultra-lightweight performance and flat rigidity, while PET foam core excels in impact resistance, waterproofing, and design flexibility.
By providing both material options, WholeChainTech enables customers to choose the most suitable solution based on actual working conditions, load requirements, environmental factors, and budget. The company continues to invest in material R&D and process optimization to deliver safer, lighter, and more durable truck body solutions for global transportation customers.
