FRPSkin Max Refrigerated Truck Body

FRPSkin Max Refrigerated Truck Body has a foam density of 50kg/m³, achieving a thermal conductivity of 0.020 W/m·K to maintain temperatures as low as -25℃ for frozen food and pharmaceuticals. The high-pressure process ensures no thermal bridges, eliminating cold spots in the cargo area.

Product Parameter

Product Advantages

1、Pre-Compliant Design: All interior surfaces, rails, and contact materials are designed to meet FDA/USDA food-contact requirements.

2、Hygienic, No-Harborage System: Features  seamless, one-piece FDA-grade HDPE lining.

3、Heavy-Duty Adjustable Rail System: High-strength galvanized steel or aluminum alloy rails with quickly reconfigurable hook spacing.

4、Precision Chill Zone Management: Equipped with a high-capacity, independent refrigeration unit. Rapidly pulls down and maintains a consistent 28°F to 30°F (-2°C to -1°C) core temperature even at 110°F (43°C) ambient

Floor panel advantage

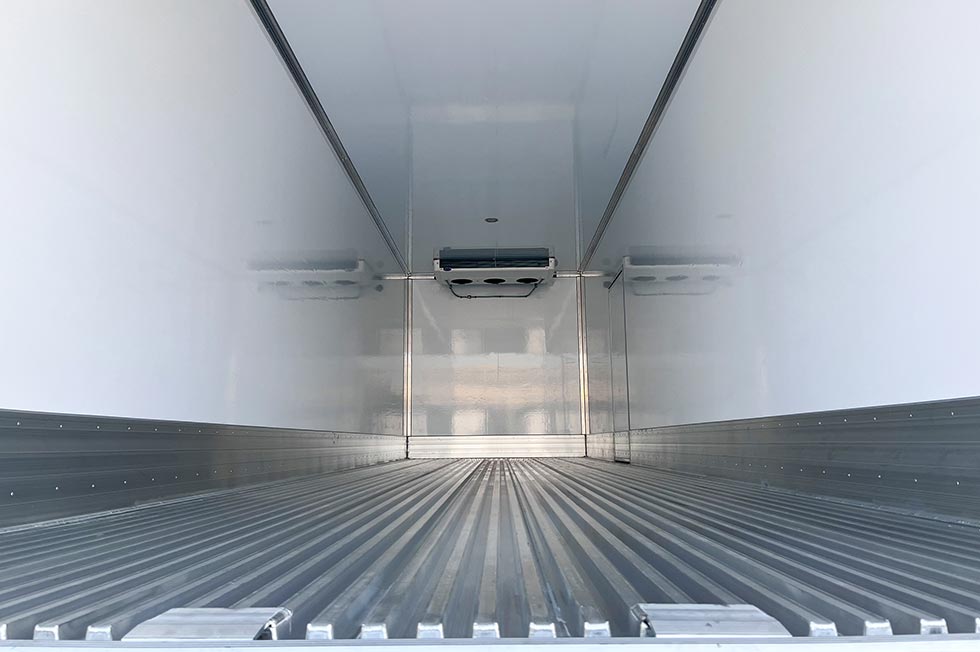

We have adopted the most mainstream and standard "Heavy-Duty Anti-Slip Floor" design, primarily intended for medium and heavy-duty refrigerated trucks (6.8 meters and above) or scenarios involving frequent forklift loading and unloading. The ribbed aluminum floor is considered the "golden configuration" for medium and heavy-duty refrigerated vehicles, as it fundamentally addresses three major pain points: forklift slip resistance, heavy-load compressive strength, and drainage for easy cleaning.

Refitted Refrigerated Truck Buying Guide (Comparison Table)

Our high-pressure injected-poured PU foam refrigerated truck bodies are highly flexible and can be customized and modified into frozen fresh truck bodies and meat hanging truck bodies to meet your diverse cold chain transportation needs.

Selection Criteria	Frozen/Fresh Refrigerated Truck (Standard Model)	Meat Hanging Refrigerated Truck (Specialized Model)
Refrigeration Unit Related	Low-temperature refrigeration unit (cooling capacity ≥ 2000W, supporting -18~-25℃)Dual-temperature zone control module (optional, suitable for multi-category frozen fresh goods)	Precision temperature control refrigeration unit (supporting 0~4℃, fluctuation within ±1℃)Intelligent temperature control sensor (real-time monitoring of temperature inside the truck)

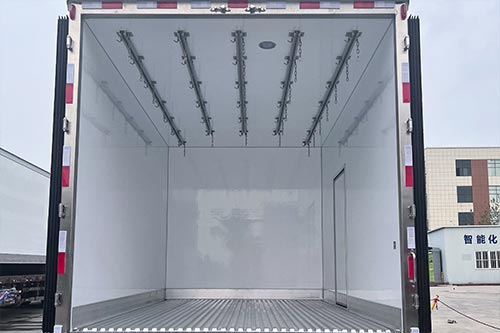

Truck Structure	Reinforced double-layer sealing strips (at door frame/door gap)Bottom non-slip drainage plate (with texture + drainage holes)	Top aluminum alloy/stainless steel load-bearing guide rails (single rail load-bearing ≥ 500kg)Adjustable meat hooks (suitable for different meat sizes)
Core Cargo	Full-range cold chain goods: Frozen food (dumplings/processed meat), fresh produce (fruits/vegetables/dairy), prepared dishes, pharmaceuticals, etc.(Form: Boxed, barreled, or palletized)	Single-category cargo: Pork/beef/lamb carcasses, primal cuts of raw meat(Form: Hanging; must avoid extrusion)
Body Core Structure	✅ Standard flat or ribbed anti-slip floor ✅ Conventional body with no overhead load-bearing structure ✅ Optional side door, temperature display, and air vents	✅ Reinforced meat hook rails on the ceiling/side walls (core feature) ✅ Reinforced body frame (to bear concentrated overhead loads) ✅ Mandatory ribbed anti-slip floor (for drainage and forklift use)
Temperature Control & Airflow	Wide temperature range: -18°C (frozen) to 25°C (fresh)Supports multi-temperature zone customization with uniform airflow coverage	Constant low temperature: -12°C to -18°C (precision control within ±1°C)Custom air ducts ensure cold air penetrates hanging meat to prevent frost formation
Hygiene & Cleaning	Food-grade standard: Easy-to-clean inner/outer skins with no obvious hygiene dead spots	High-grade food hygiene: Seamless body + detachable rails for thorough cleaning(Prevents meat residue buildup and bacterial growth; meets abattoir standards)

The gold standard in refrigerated transport. Experience maximum thermal efficiency and structural integrity with our high-density PU foam cores. Schedule a consultation to optimize your cold chain logistics.
